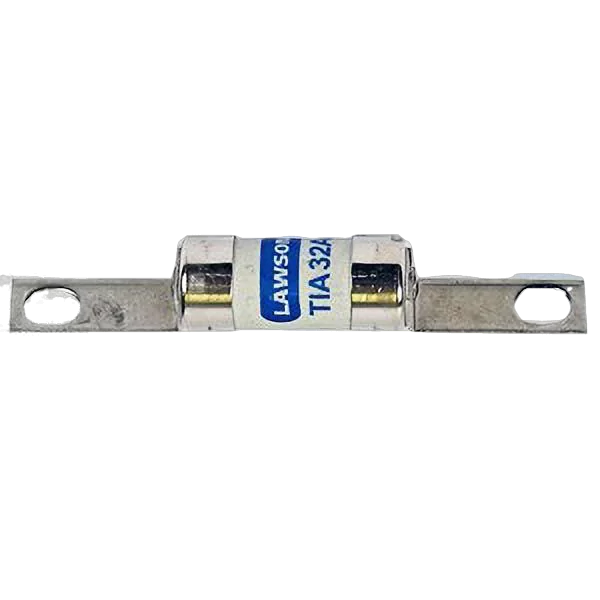

Lawson TIA32 Type TIA BS88, IEC60269-2 Industrial HRC Fuse Link With Offset Bolted Tags 32 Amps 415V ac

Lawson TIA32 Type TIA BS88 HRC Industrial Fuse Link – 32A, Offset Bolted Tags, Compact Protection for Medium Load Circuits

The Lawson TIA32 Type TIA HRC Fuse Link is engineered for medium-load protection in industrial and commercial electrical systems. With offset bolted tags and full compliance to BS88 and IEC60269-2, it is ideal for control panels, auxiliary loads, and specialised distribution gear.

• 32A Current Rating: Suitable for safeguarding moderate industrial loads, including control gear and sub-circuits.
• Offset Bolted Tags: Designed for installations using compact or non-standard fuse holders.
• High Fault Capacity: Tested to 80kA AC and 40kA DC for reliable short-circuit protection.
• Dual Voltage Operation: Rated for 415V AC (tested to 457V) and 250V DC applications.
• gG Classification: Compliant with BS88: Part 2 and UK Wiring Regulations for general-purpose use.

Technical Specification

• Current Rating: 32A
• Voltage Rating: 415V AC / 250V DC
• Breaking Capacity: 80kA AC / 40kA DC
• Standards: BS88: Part 2, IEC60269-2
• BS Reference Code: A2

✅ Choose the Lawson TIA32 Fuse Link for compact, regulation-compliant protection in medium-load industrial systems!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
