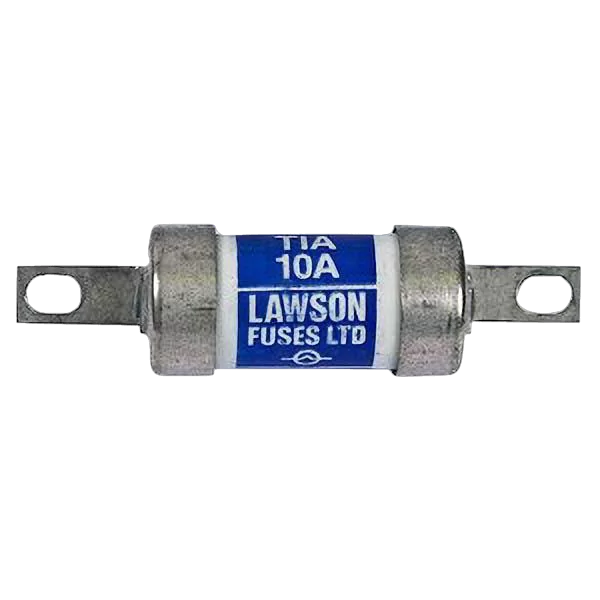

Lawson TIA10 Type TIA BS88, IEC60269-2 Industrial HRC Fuse Link With Offset Bolted Tags 10 Amps 415V ac

Lawson TIA10 Type TIA BS88 HRC Industrial Fuse Link – 10A, Offset Bolted Tags, Compact Protection for Industrial Systems

The Lawson TIA10 Type TIA HRC Fuse Link provides compact and reliable protection for low-current industrial circuits. With offset bolted tags and full compliance to BS88 and IEC60269-2, it's ideal for use in control panels, instrumentation, and specialist distribution equipment.

• Low Current Protection: Rated at 10A for sensitive equipment and low-load circuit protection.
• Offset Bolted Tags: Ensures secure installation in non-standard or space-limited fuse holders.
• High Breaking Capacity: Withstands up to 80kA AC and 40kA DC for effective fault handling.
• Dual Voltage Rated: Suitable for 415V AC and 250V DC systems (tested to 457V AC).
• gG Classification: Fully compliant with BS88: Part 2 and UK Wiring Regulations for general use.

Technical Specification

• Current Rating: 10A
• Voltage Rating: 415V AC / 250V DC
• Breaking Capacity: 80kA AC / 40kA DC
• Standards: BS88: Part 2, IEC60269-2
• BS Reference Code: A2

✅ Install the Lawson TIA10 Fuse Link for precise, safe, and compact protection in control and industrial systems!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
