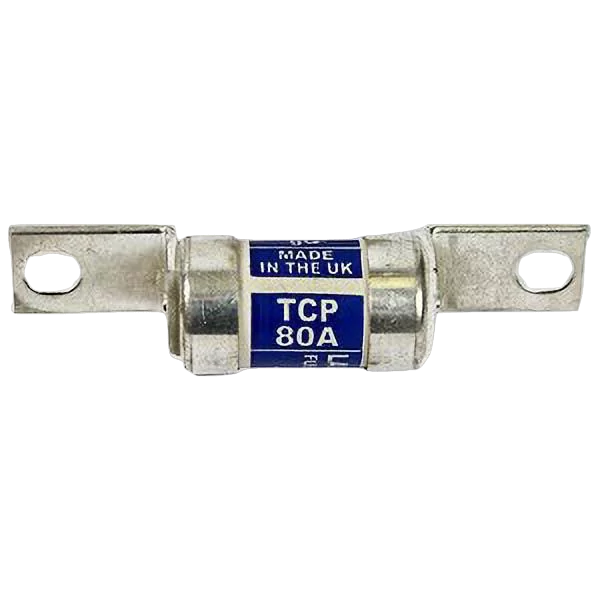

Lawson TCP80 Type TCP BS88, IEC60269-2 Industrial HRC Fuse Link With Offset Bolted Tags 80 Amps 415V ac

Lawson TCP80 Type TCP BS88 HRC Industrial Fuse Link – 80A, Offset Bolted Tags, Motor Rated Protection for Industrial Systems

The Lawson TCP80 Type TCP HRC Fuse Link provides robust and reliable protection for industrial circuits and motor loads. Designed with offset bolted tags and compliant with BS88 and IEC60269-2, it’s ideal for specialised switchgear and distribution systems.

• 80A Rated Protection: Suited for protecting medium-to-high current loads, including motors and sub-distribution boards.
• Offset Bolted Tags: Designed for installations requiring offset tag alignment in non-standard fuse holders.
• High Breaking Capacity: Rated at 80kA AC and 40kA DC for reliable short-circuit protection.
• Dual Voltage & Motor Rated: Compatible with 415V AC (tested to 457V) and 250V DC applications.
• gG Classification: Fully compliant with BS88: Part 2 and the latest UK Wiring Regulations.

Technical Specification

• Current Rating: 80A
• Voltage Rating: 415V AC / 250V DC
• Breaking Capacity: 80kA AC / 40kA DC
• Standards: BS88: Part 2, IEC60269-2
• BS Reference Code: A4

✅ Choose the Lawson TCP80 Fuse Link for safe, compliant, and high-capacity protection in industrial installations!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
