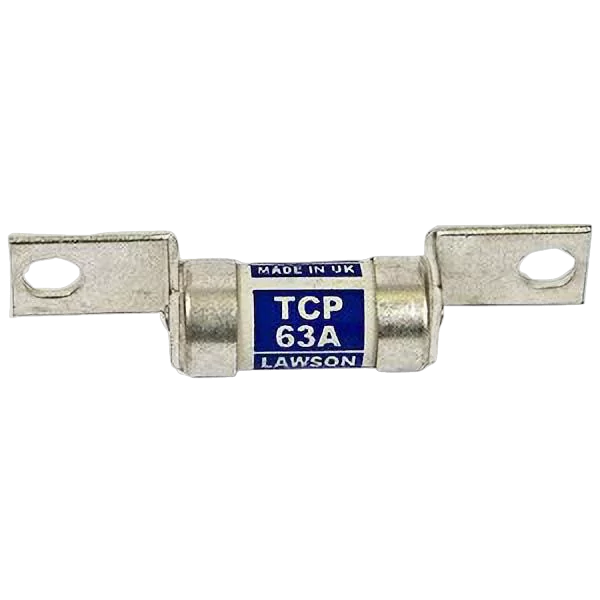

Lawson TCP63 Type TCP BS88, IEC60269-2 Industrial HRC Fuse Link With Offset Bolted Tags 63 Amps 415V ac

Lawson TCP63 Type TCP BS88 HRC Industrial Fuse Link – 63A, Offset Bolted Tags, High Integrity Circuit Protection

The Lawson TCP63 Type TCP HRC Fuse Link is designed for dependable protection of medium-load industrial circuits. Built to BS88 and IEC60269-2 standards, it features offset bolted tags for compatibility with specialised distribution boards and non-standard fuse holders.

• 63A Rated Protection: Ideal for machinery, sub-distribution boards, and motor circuits requiring medium-current safeguarding.
• Offset Bolted Tags: Suited for compact or offset terminal configurations in industrial setups.
• High Breaking Capacity: Withstands fault conditions up to 80kA AC and 40kA DC for reliable disconnection.
• Motor Rated & Dual Voltage: Supports 415V AC motor systems and 250V DC installations with certified performance.
• BS88 gG Compliant: Fully conforms to BS88: Part 2 and UK Wiring Regulations for general and motor protection.

Technical Specification

• Current Rating: 63A
• Voltage Rating: 415V AC / 250V DC
• Breaking Capacity: 80kA AC / 40kA DC
• Standards: BS88: Part 2, IEC60269-2
• BS Reference Code: A4

✅ Rely on the Lawson TCP63 Fuse Link for safe, high-performance protection in demanding industrial applications!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
