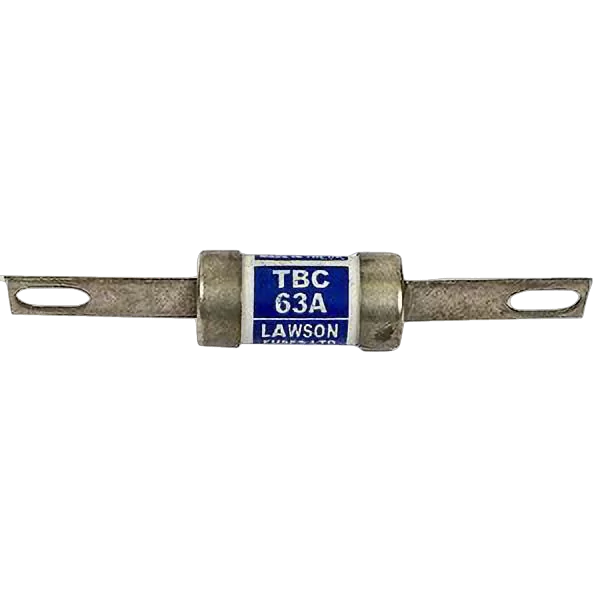

Lawson TBC63M80 Type TBC BS88, IEC60269-2 Industrial HRC Motor Rated Fuse Link With Centre Bolted Tags 63M80 Amps 415V ac
TBC63M80
Lawson TBC63M80 Type TBC Industrial HRC Motor Rated Fuse Link – BS88 & IEC60269-2 Compliant, 63M80A, 415V AC, Centre Bolted Tags
The Lawson TBC63M80 Motor Rated Industrial HRC Fuse Link offers reliable motor circuit protection in demanding industrial environments. Manufactured to BS88: Part 2 and IEC60269-2 standards, this 63M80A fuse link features centre bolted tags and a high breaking capacity, ensuring safe disconnection and compliance with UK Wiring Regulations.
- Motor Rated Protection: Engineered for motor circuits with gG classification suitable for general industrial use.
- Centre Bolted Tags: Designed for secure fitting in BS88 bolted fuse holders and distribution fusegear.
- High Breaking Capacity: Rated for 80kA at 415V AC and 40kA at 250V DC to safely interrupt faults.
- Standards Compliance: Complies with BS88: Part 2 and IEC60269-2, ensuring regulatory adherence.

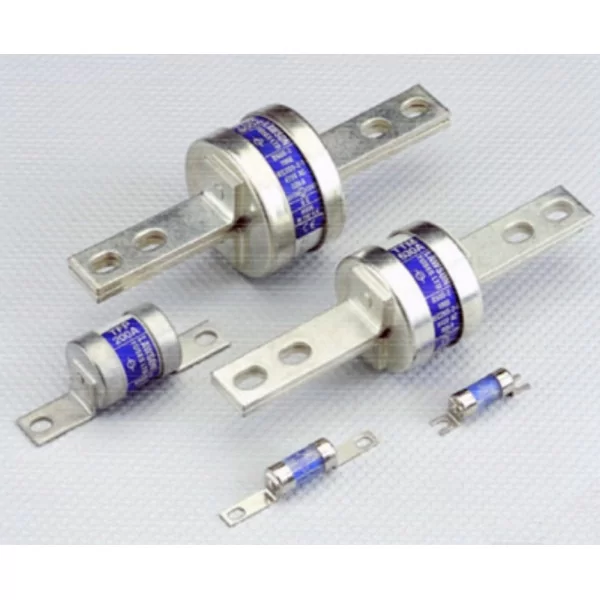

- Wide Current Range: Available in ratings from 2A to 63A to meet various industrial needs.
Technical Specification
- Current Rating: 63M80A
- Voltage Rating: 415V AC, 240V DC
- Breaking Capacity: 80kA AC, 40kA DC
- BS88 Reference: B1
- Standards: BS88: Part 2 / IEC60269-2
Dimensions
- A: 128.5mm
- B: 111.0mm
- C: 55.0mm
- D: 21.0mm
- E: 1.4mm
- F: 14.2mm
- G: 11.8mm
- H: 8.7mm
- K: 11.2mm
✅ Trust the Lawson TBC63M80 Motor Rated Fuse Link for dependable, high-capacity motor circuit protection in industrial settings!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Breaking Capacity | 40000 DC 80000 AC Amperes |
| Rated Voltage | 250 DC 415 AC V |
| Ean Code | 5036159001471 |
| Size | B1 |
| Connection Type | Central Bolted Tag |
| Product | Fuse |
| Type | Motor Rated |
| Length | 137 mm |
| Voltage | 415 V |
| Material | Ceramic |
| Width | 26 mm |
| Current Rating | 80A |
| Standards | IEC 60269-2/BS 88-2 ASTA |
| Qualifier | gG/gM |
| Rated Current | 63|80 A |
