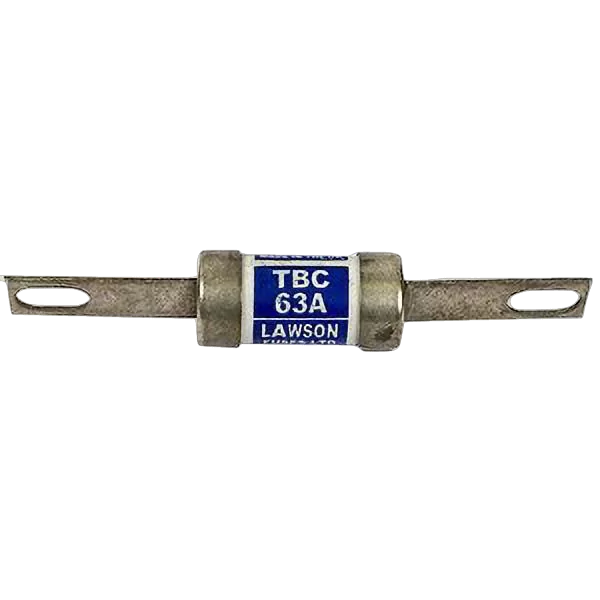

Lawson TBC63M100 Type TBC BS88, IEC60269-2 Industrial HRC Motor Rated Fuse Link With Centre Bolted Tags 63M100 Amps 415V ac

400/415 Volt Industrial Fuse-Links with Bolted Connections to BS88: Part 2, IEC60269-2

Rated voltages: 415V a.c., 250V d.c. Breaking range and utilization category: gG Rated breaking capacities: 80kA at 415V a.c, 40kA at 250V d.c.

Lawson Type “ N†& “T†fuse-links are for use in industrial installations and can be fitted into BS88 bolted fuse-holders and distribution fusegear. The range includes all BS88: Part 2 reference fuse-links up to 800 Amps and has gG classification, ensuring compliance with the current edition of the UK Wiring Regulations. Many non-reference tag variants are available to cater for installation in non-standard or specialised equipment.
The range has a rated voltage of 415V a.c. and has been certified at a test recovery voltage of at least 110%. These fuselinks are therefore suitable for use on sys tems with voltages up to 457V a.c. The range also has a rating of 250V d. c.
A complementary range of solid/neutral links is available to suit our fuse-link range.

Specification:
Current Rating (A): 2,4,6,10,16,20,25,32,35,40,50,63
BS88 Reference: (as B1)
Voltage Rating (V): 415a.c. 240d.c.
Breaking Cpacity: (kA): 80kA-a.c. 40kA-d.c.
BS Standard: BS88: Part 2
IEC Standard: 60269-2

Dimesions:

A: 128.5mm
B: 111.0mm
C: 55.0mm
D: 21.0mm
E: 1.4mm
F: 14.2mm
G: 11.8mm
H: 8.7mm
K: 11.2mm
