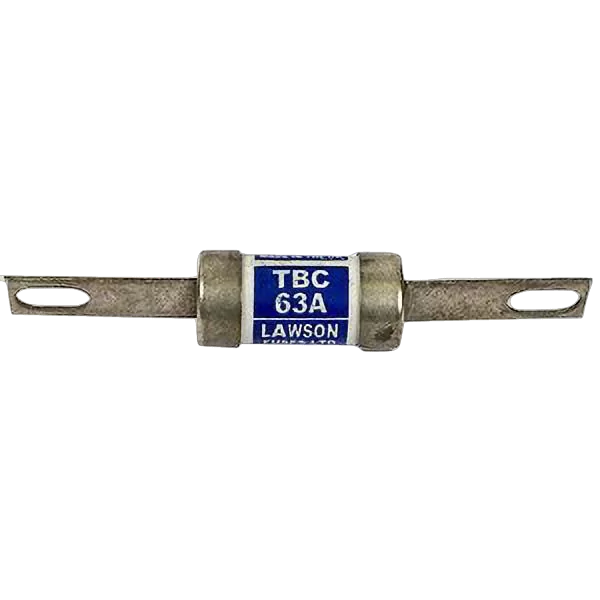

Lawson TBC63M100 Type TBC BS88, IEC60269-2 Industrial HRC Motor Rated Fuse Link With Centre Bolted Tags 63M100 Amps 415V ac

Lawson TBC63M100 Type TBC Industrial HRC Motor Rated Fuse Link – BS88 & IEC60269-2 Compliant, 63M100A, 415V AC, Centre Bolted Tags

The Lawson TBC63M100 Motor Rated Industrial HRC Fuse Link is engineered for motor circuit protection in demanding industrial environments. Manufactured to BS88: Part 2 and IEC60269-2 standards, this 63M100A fuse link features centre bolted tags and high breaking capacity, ensuring reliable disconnection and compliance with UK Wiring Regulations.

• Motor Rated Protection: Designed specifically for motor circuits with gG classification for general purpose use.
• Centre Bolted Tags: Secure fitting in BS88 bolted fuse holders and distribution fusegear.
• High Breaking Capacity: Rated for 80kA at 415V AC and 40kA at 250V DC for safe fault interruption.
• Standards Compliance: Meets BS88: Part 2 and IEC60269-2, ensuring regulatory compliance.
• Wide Current Range: Available in ratings from 2A to 63A to suit various industrial applications.

Technical Specification

• Current Rating: 63M100A
• Voltage Rating: 415V AC, 240V DC
• Breaking Capacity: 80kA AC, 40kA DC
• BS88 Reference: B1
• Standards: BS88: Part 2 / IEC60269-2

Dimensions

• A: 128.5mm
• B: 111.0mm
• C: 55.0mm
• D: 21.0mm
• E: 1.4mm
• F: 14.2mm
• G: 11.8mm
• H: 8.7mm
• K: 11.2mm

✅ Rely on the Lawson TBC63M100 Motor Rated Fuse Link for dependable, high-capacity motor circuit protection in industrial settings!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
