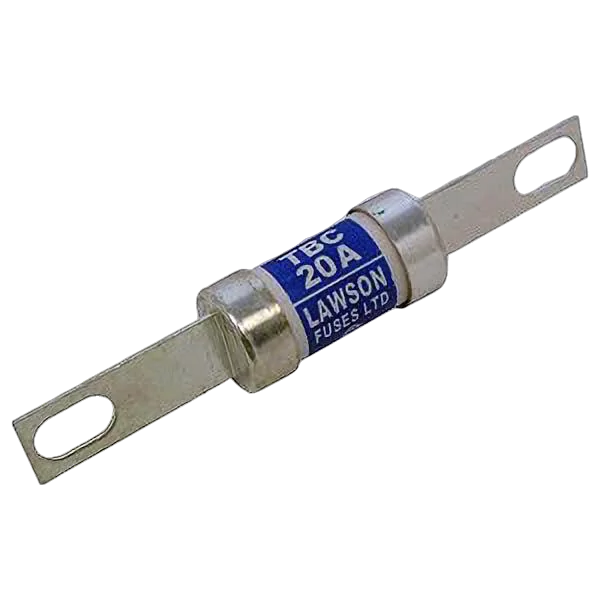

Lawson TBC40 Type TBC BS88, IEC60269-2 Industrial HRC Fuse Link With Centre Bolted Tags 40 Amps 415V ac
TBC40
Lawson TBC40 Type TBC Industrial HRC Fuse Link – BS88 & IEC60269-2 Compliant, 40A, 415V AC, Centre Bolted Tags
The Lawson TBC40 Type TBC Industrial HRC Fuse Link provides robust protection for industrial electrical systems. Manufactured to BS88: Part 2 and IEC60269-2 standards, this 40A fuse link features centre bolted tags and high breaking capacity, ensuring safe and reliable fault interruption in demanding environments.
- Industrial-Grade Protection: Suitable for heavy-duty installations with a gG classification for general purpose use.
- Centre Bolted Tags: Designed for secure mounting in BS88 bolted fuse holders and distribution fusegear.
- High Breaking Capacity: Rated for 80kA at 415V AC and 40kA at 250V DC, providing reliable disconnection during faults.
- Standards Compliance: Meets BS88: Part 2 and IEC60269-2 ensuring compliance with UK Wiring Regulations.

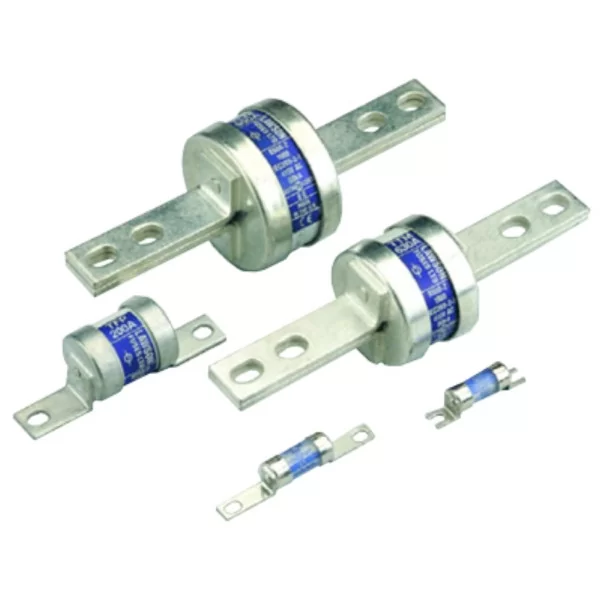

- Wide Current Range: Available in ratings from 2A to 63A to suit various industrial applications.
Technical Specification
- Current Rating: 40A
- Voltage Rating: 415V AC, 240V DC
- Breaking Capacity: 80kA AC, 40kA DC
- BS88 Reference: B1
- Standards: BS88: Part 2 / IEC60269-2
Dimensions
- A: 128.5mm
- B: 111.5mm
- C: 55.0mm
- D: 21.0mm
- E: 1.4mm
- F: 14.2mm
- G: 11.8mm
- H: 8.7mm
- K: 11.2mm
✅ Choose the Lawson TBC40 Fuse Link for reliable, high-performance protection in industrial electrical installations!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Breaking Capacity | 80000 Amperes |
| Rated Voltage | 415 V |
| Ean Code | 5036159000771 |
| Size | B1 |
| Connection Type | Central Bolted Tag |
| Product | Fuse |
| Type | HRC |
| Length | 137 mm |
| Voltage | 415 V |
| Material | Ceramic |
| Width | 22 mm |
| Current Rating | 40A |
| Standards | BS88-2 |
| Rated Current | 40 A |
