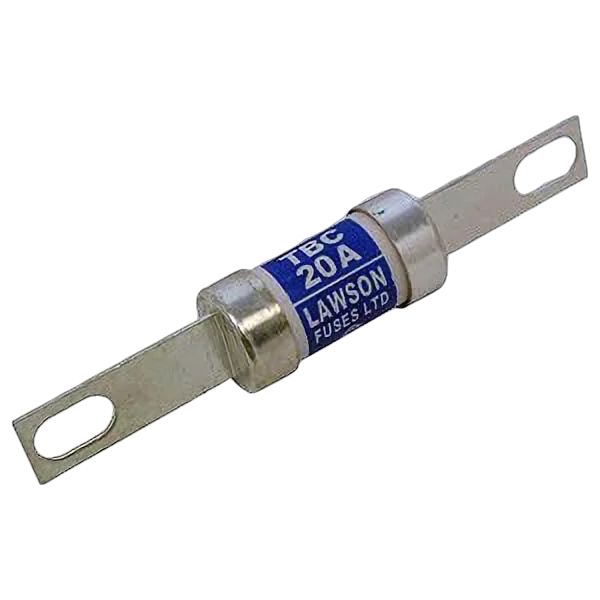

Lawson TBC32 Type TBC BS88, IEC60269-2 Industrial HRC Fuse Link With Centre Bolted Tags 32 Amps 415V ac
TBC32
Lawson TBC32 Type TBC Industrial HRC Fuse Link – BS88 & IEC60269-2 Compliant, 32A, 415V AC, Centre Bolted Tags
The Lawson TBC32 Type TBC Industrial HRC Fuse Link delivers robust protection for industrial power systems. Built to BS88: Part 2 and IEC60269-2 standards, this 32A fuse link features centre bolted tags and a high breaking capacity, ensuring safe fault interruption in demanding environments.
- Industrial Grade Protection: Suitable for heavy-duty installations with gG classification for general purpose use.
- Centre Bolted Tags: Designed for secure fitting in BS88 bolted fuse holders and distribution fusegear.
- High Breaking Capacity: Rated for 80kA at 415V AC and 40kA at 250V DC for safe disconnection during faults.
- Standards Compliance: Meets BS88: Part 2 and IEC60269-2 ensuring compliance with current UK Wiring Regulations.

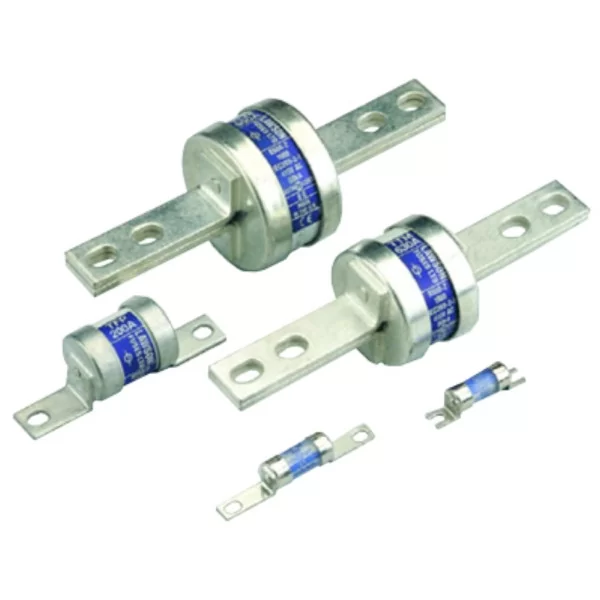

- Wide Current Range: Available in ratings from 2A to 63A to suit various industrial applications.
Technical Specification
- Current Rating: 32A
- Voltage Rating: 415V AC, 240V DC
- Breaking Capacity: 80kA AC, 40kA DC
- BS88 Reference: B1
- Standards: BS88: Part 2 / IEC60269-2
Dimensions
- A: 128.5mm
- B: 111.5mm
- C: 55.0mm
- D: 21.0mm
- E: 1.4mm
- F: 14.2mm
- G: 11.8mm
- H: 8.7mm
- K: 11.2mm
✅ Trust the Lawson TBC32 Fuse Link for reliable, high-capacity protection in industrial electrical installations!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Breaking Capacity | 80000 Amperes |
| Rated Voltage | 415 V |
| Ean Code | 5036159000764 |
| Connection Type | Bolted Tag |
| Product | Fuse |
| Type | N&T |
| Length | 137 mm |
| Voltage | 415 V |
| Width | 22 mm |
| Current Rating | 32A |
| Standards | BS 88 IEC 60269-2 EN 60269-2 |
| Qualifier | gG |
| Rated Current | 32 A |
