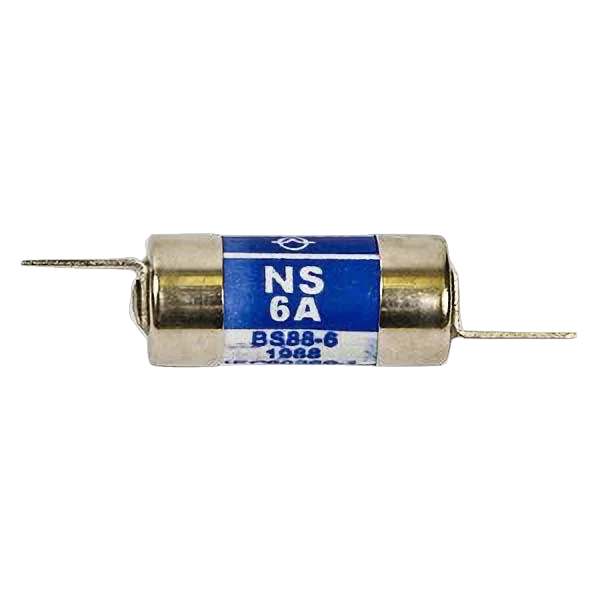

NS2 Type NS BS88, IEC60269-2 Compact Dimension Industrial CDS Fuse Link With Offset Blade Tags 2 Amps 415V ac

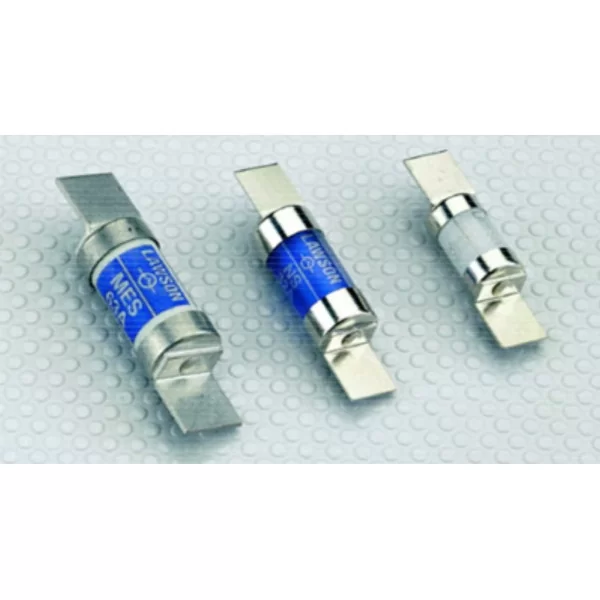

NS BS88, IEC269 Industrial HRC Fuse Links Offset Blade Tags 550V ac and 415V ac Motor Rated
This compact range of Q1 fusing factor general purpose (gG) fuse links have a breaking capacity of 80kA ac and 40kA dc where applicable.

230/240 Volt and 400/415 Volt Compact Dimension Fuse-Links to BS88: Part 6, IEC60269-2

Compact Type“CDSâ€fuse-links are for use in single or three phase commercial and industrial installations and can be fitted into BS88 bladed type fuse-holders and distribution fusegear.
The Lawson CLIPFIT range has rated voltages of 240V a.c. or 415V a.c. and has been certified at a test recove ry voltage of at least 110%. These fuse-links there fo re are suitable for use on systems with voltages up to 264 or 457V a.c. The rated and test voltages also ensure that the range meets all the transitional voltage re q u i re m e nts specified within the harmonised nominal voltages of 230/400V a.c.
A complementary range of solid/neutral links is available to suit our fuse-link rang e.

Specification:
Current Rating (A): 2,4,6,10,16,20,25,32
BS88 Reference: F1
Voltage Rating (V): 415a.c.
Breaking Cpacity: (kA): 80kA-a.c.
BS Standard: BS88: Part 6
IEC Standard: 60269-2

Dimesions:

A: 34.5mm
B: 13.8mm
D: 58.5mm
E: 12.7mm
F: 0.8mm
N: 3.5mm
