Vent Axia 499632 Sentinel Econiq M MVHR Unit

Vent-Axia 499632 Sentinel Econiq M MVHR – Smart, High-Efficiency Heat Recovery Ventilation

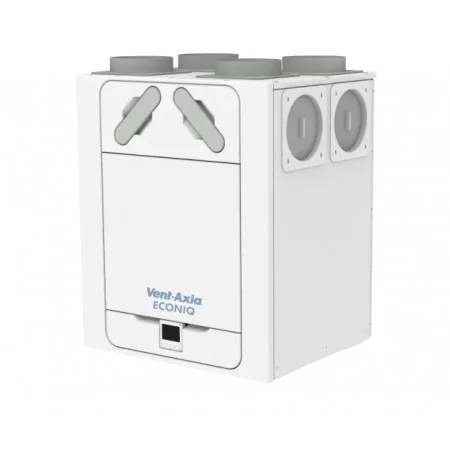

The Vent-Axia 499632 Sentinel Econiq M is a high-performance mechanical ventilation with heat recovery (MVHR) unit, designed to improve indoor air quality and energy efficiency in residential properties.

The Sentinel Econiq M continuously extracts stale, moisture-laden air from kitchens, bathrooms and utility rooms while supplying filtered fresh air to living spaces. With heat recovery efficiency of up to 93%, the unit recovers heat from extracted air to help maintain comfortable indoor temperatures and reduce household heating costs.

Part of Vent-Axia's advanced Lo-Carbon Sentinel Econiq range, this MVHR unit combines powerful, energy-efficient motors with ultra-quiet operation and intelligent ventilation controls.

• High-Efficiency Heat Recovery: Recovers up to 93% of extracted heat, helping reduce energy consumption and heating costs

• Continuous Whole-House Ventilation: Removes stale, humid air and supplies filtered fresh air to improve indoor air quality

• Ultra-Quiet Operation: Acoustically insulated housing and anti-vibration motor mounts minimise operating noise

• Intelligent Smart Controls: Sentinel-X wireless controls and Vent-Axia Connect app enable convenient ventilation management

• Automatic Humidity Control: Integral humidity sensor adjusts ventilation speeds in response to changing moisture levels

• Automatic Summer Bypass: Uses cooler outside air to help maintain comfortable indoor temperatures during warmer weather

• Active Frost Protection: Protects the heat exchanger from freezing temperatures for reliable year-round performance

• Effective Air Filtration: Includes G4 filters as standard, with optional M5 and F7 filters for enhanced air filtration

• Flexible Installation Options: Supports vertical or horizontal 200mm duct connections, reversible handing and wall or floor mounting

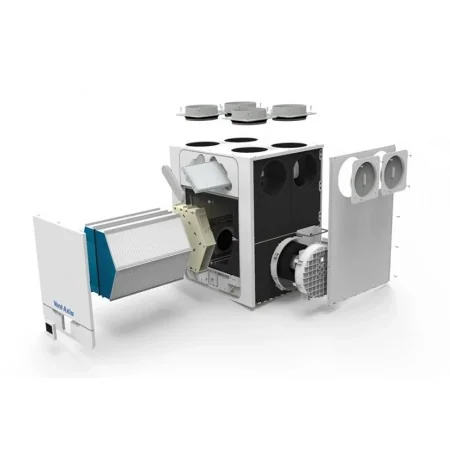

• Easy Maintenance and Commissioning: Front-accessible components, tool-free filters and app-based commissioning simplify setup and servicing

TECHNICAL SPECIFICATIONS

• Product Code: 499632
• Ventilation Type: Mechanical Ventilation with Heat Recovery (MVHR)
• Recommended Maximum Airflow: 125l/s at 150Pa
• Thermal Efficiency: Up to 93%
• Specific Energy Consumption (SEC) Class: A+
• Duct Connection Size: 200mm
• Standard Filtration: ISO Coarse (G4)
• Operating Temperature: -20°C to +40°C
• Mounting Options: Wall or floor mounted
• Dimensions (H × W × D): 881 × 728 × 608mm
