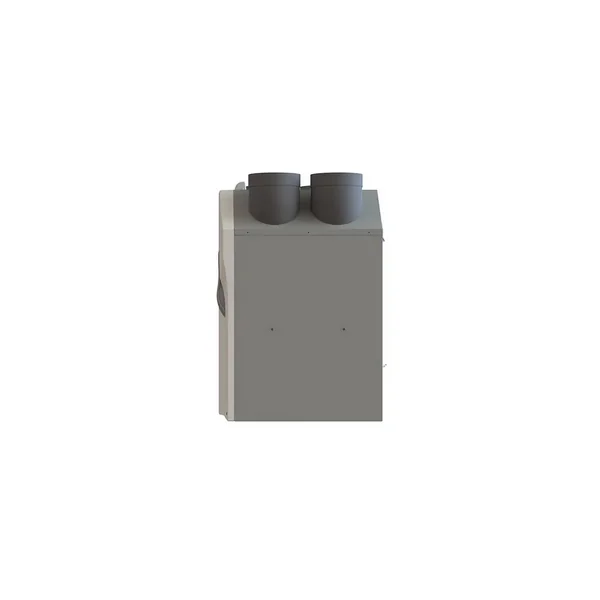

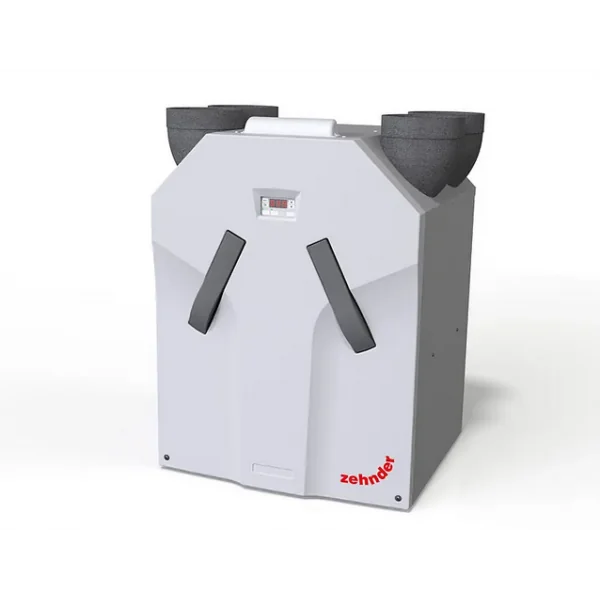

Zehnder 471233405 ComfoAir 350, Right Handed Mechanical Ventilation Unit With Heat Recovery MVHR
471233405
The Zehnder ComfoAir 350 is a heat recovery unit designed to enable better and easier specification of ventilation in new properties due to its versatile duct connections. It can be wall or floor mounted and has rotatable spigots to duct vertically or horizontally. It contains features such as its automatic true summer by-pass, high heat recovery efficiency and upgradable high grade filters providing a comfortable, healthy and energy-efficient indoor climate.
Passive house certified unit for properties up to 160m2
- 100% full and filtered summer bypass.
- Rotatable spigots for horizontal or vertical duct connections.
- Tool free filter access.
- Volt free contact boost capability.
- ISO ePM1 50%(F7) filter option.
- Enthalpy cube option.
- Passive House certified.
Catalogue number | 471233405 |
GTIN | 5030216110250 |
Production model | COMFOAIR 350 GB R |
Air flow rate | 400 m³/h |
Amperage | 1.77 A |
Supply voltage | 230 V |
Frequency | 50 Hz |
Noise/Sound Level | 55 |
Energy class I | A |
Energy class II | A+ |
Roof connection, top | Y |
Depth | 585 cm |
Residential connection, right side | Y |
Cos phi according to EPN standard | 0.42 |
Suitable for wall mounting | Y |
Max. air volume at 150 Pa | 387 m³/h |
Ceiling mounting | N |
Nominal duct diameter | 150-160 mm |
With thermal overload protection | Y |
Nominal duct diameter | 150-160 mm |
Height | 850 cm |
Type of speed control | Other |
Max. air volume at 200 Pa | 364 m³/h |
Max. air volume at 100 Pa | 409 m³/h |
Residential connection, underside | N |
With bypass | Y |
Material housing | Steel coated |
Depth | 585 cm |
Power input according to EPN standard | 0.086 kW |
Suitable for central heating boiler connection | N |
Suitable for floor mounting | Y |
Roof connection, side | Y |
Max. air volume at 250 Pa | 342 m³/h |
Width | 710 cm |
Residential connection, left side | N |
Residential connection, top | Y |
Suitable for wireless remote control | N |
Width | 710 cm |
With digital display | Y |
Height | 850 cm |
Direct-current motor | Y |
Thermal efficiency according to EPN standard | 96.4 % |
Range | Zehnder ComfoAir |
Product | Whole House Filtration |
