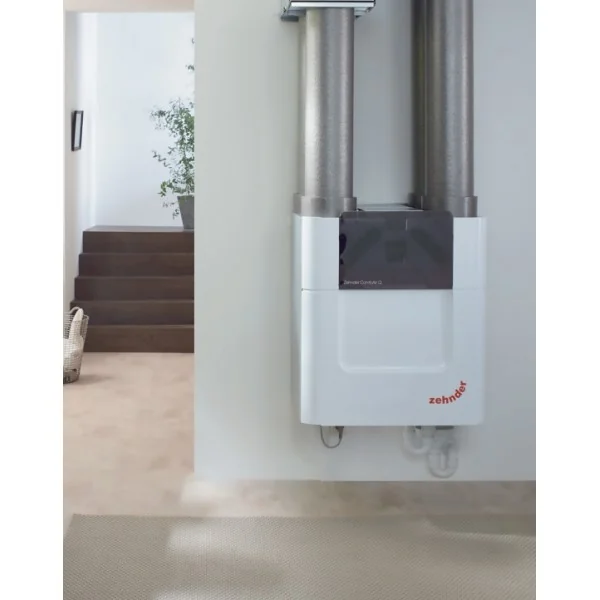

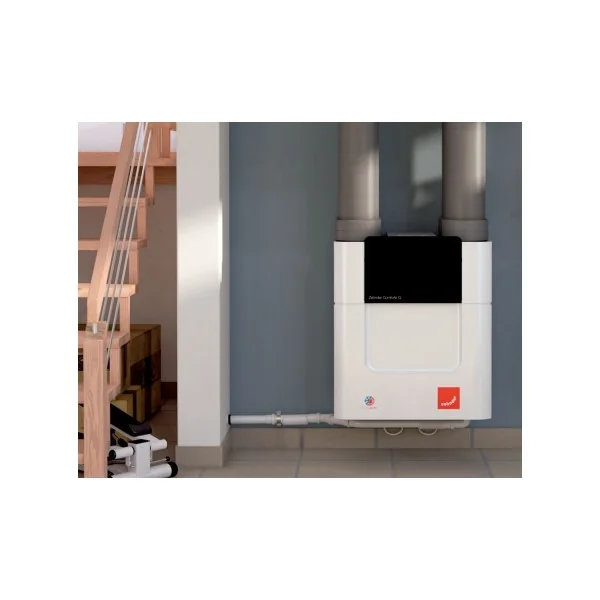

Zehnder 471502026 ComfoAir Q600 with Enthalpy Exchanger Mechanical Ventilation Unit With Heat Recovery MVHR & Humidity Sensor
471502026
The Zehnder ComfoAir Q, with state of the art design and intelligent technology, regardless of whether you are working on a new build or an old building, with Zehnder comfortable ventilation you have an innovative, tried and tested complete system. It contains features such as its automatic modulating true summer by-pass, world class heat recovery efficiency and integrated humidity sensor to provide a comfortable, healthy and energy-efficient indoor climate.
State of the art passive house certified unit for properties up to 350m2
- World class 96% efficiency.
- 100% full and filtered modulating summer bypass.
- Left or right hand configuration through software alone, no mechanical alteration required.
- Commissioning wizard for a quick and simple set-up process.
- Flow control to maintain commissioned flow rates.
- Adaptive comfort technology.
- Automatic passive temperature boost in summer.
- Humidity boost continuously monitors the humidity level within the home and looks for a man-made spike before boosting the unit, irrespective of distance or dilution.
- Tool free filter access.
- ISO ePM1 55% (F7) filter option.
| Catalogue number | 471502026 |
| GTIN | 8717573874465 |
| Production model | COMFOAIR Q600 GB ST ERV |
| Air flow rate | 600 m³/h |
| Amperage | 2.7 A |
| Supply voltage | 230 V |
| Frequency | 50 Hz |
| Noise/Sound Level | 51 |
| Energy class I | A |
| Energy class II | B |
| Depth | 570 cm |
| Roof connection, side | Y |
| Cos phi according to EPN standard | 0.54 |
| Max. air volume at 300 Pa | 600 m³/h |
| Residential connection, right side | Y |
| Suitable for wall mounting | Y |
| Type of speed control | 3 positions |
| Ceiling mounting | N |
| Nominal duct diameter | 180-200 mm |
| With thermal overload protection | Y |
| Nominal duct diameter | 180-200 mm |
| Height | 855 cm |
| Max. air volume at 250 Pa | 600 m³/h |
| Max. air volume at 100 Pa | 600 m³/h |
| With bypass | Y |
| Residential connection, underside | N |
| Material housing | Steel coated |
| Depth | 570 cm |
| Power input according to EPN standard | 0.174 kW |
| Suitable for floor mounting | Y |
| Roof connection, top | Y |
| Max. air volume at 200 Pa | 600 m³/h |
| Width | 725 cm |
| Max. air volume at 150 Pa | 600 m³/h |
| Residential connection, left side | N |
| Residential connection, top | Y |
| Suitable for wireless remote control | Y |
| Width | 725 cm |
| With digital display | Y |
| Direct-current motor | Y |
| Height | 855 cm |
| Thermal efficiency according to EPN standard | 76 % |
| Suitable for central heating boiler connection | N |
| Range | Zehnder ComfoAir |
| Product | Whole House Filtration |
