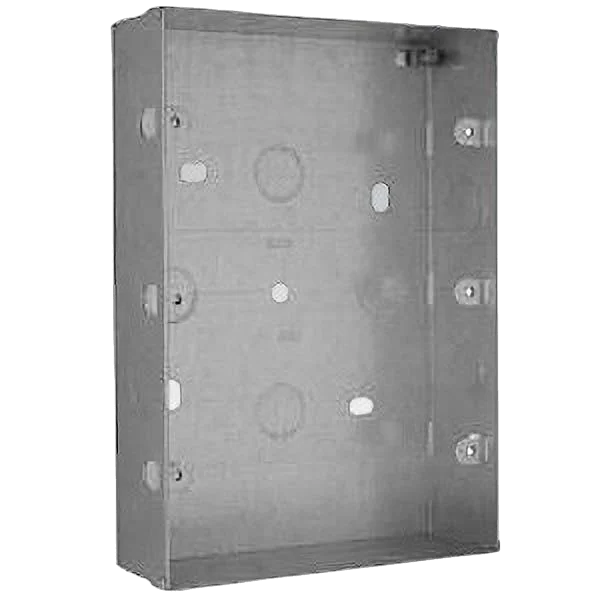

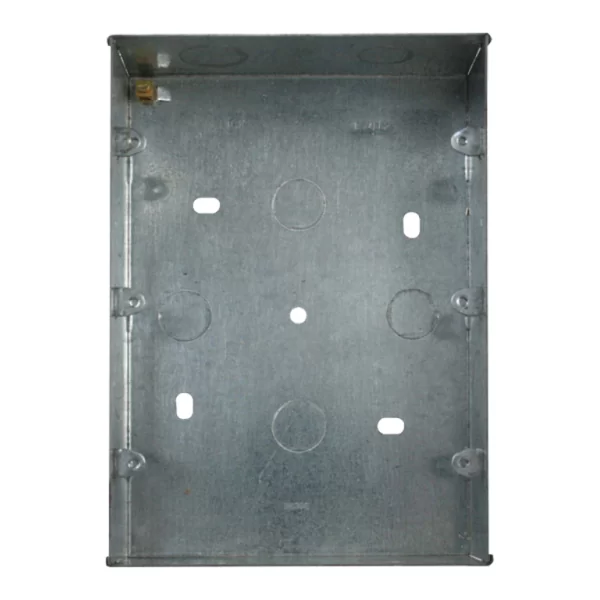

Click WA518 MiniGrid Metal Triple Row Flush Mounting Box With Knockouts 137mm x 197mm x 47mm
WA518
Click WA518 MiniGrid Triple Row Flush Mounting Box – 47mm Deep Galvanised Steel Box for 18 Module Setups
The Click WA518 MiniGrid Mounting Box is a heavy-duty, 47mm deep flush back box designed for use with 18-module MiniGrid frontplates. Engineered for commercial and high-capacity installations, it features a triple-row layout with multiple knockouts and reliable galvanised steel construction.
- Triple Row Capacity: Suitable for use with 18-module MiniGrid frontplates (518 Range), perfect for complex switching configurations.
- Durable Steel Construction: Manufactured from galvanised steel for strength and long-lasting performance.
- Multi-Size Knockouts: Includes 7 x 20mm and 3 x 25mm knockouts for flexible cable entry.
- Yoke Compatibility: Requires 3 x GR100PW mounting yokes for secure MiniGrid module installation.
- Designed for MiniGrid: Specifically intended for Click MiniGrid frontplates to support full customisation.
Technical Specification
- Brand: Click
- Product Code: WA518
- Type: Triple Row Flush Mounting Box
- Dimensions: 137mm x 197mm x 47mm
- Knockouts: 7 x 20mm, 3 x 25mm
✅ Install the Click WA518 MiniGrid Box for a reliable, scalable solution in high-capacity custom switch installations!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5055287013026 |
| Range | Scolmore MiniGrid |
| Product | Gridswitch Mounting Box |
| Type | Flush Mounting Box |
| Colour | Silver |
| Number Of Gangs | 2 |
| Entry Method | Universal |
| Earth Included | Y |
| Warranty | 10 Years |
| Multi Compartment | N |
| Number Of Entries | 8 |
| Mounting | Flush |
| Material | Galvanised Steel |
| Depth | 47 mm |
| Finish | Galvanised |
| Standards | BS 4662 |
| Qualifier | Click Essentials Back Boxes WA518 3 Tier 47mm Deep Galvanised Steel K.O. Box |
| Ce Approved | N |
| Fixings Included | N |
| Knockouts Included? | Y |
| Number Of Knockouts | 8 |
| Knockout Shape | 8 x 20mmØ 4 x 25mmØ |
| Height | 197 mm |
| Nominal Width | 137 mm |
| Included Fixings | N |
