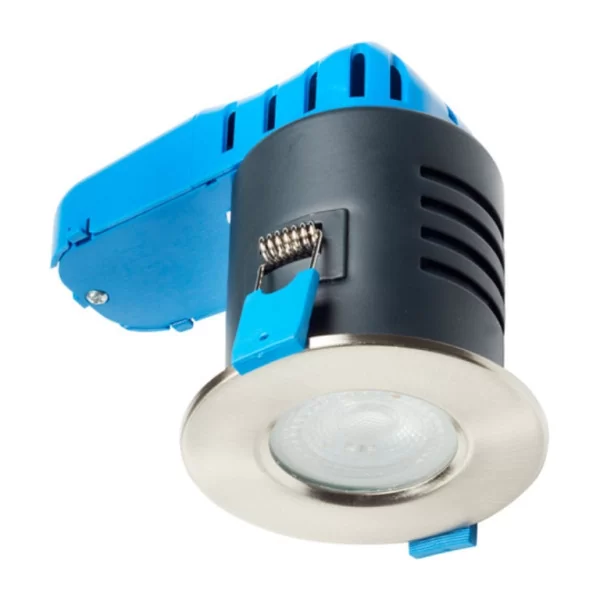

Deta L1701SC3 Satin Chrome Die-Cast Fixed Dimmable LED Fire Rated Downlight With Warm White (2800K) LED Lamp IP65 5W 410Lm Cut Out ⌀: 70-75mm Decess Depth: 120mm
L1701SC3
Fixed Dimmable LED Fire Rated Downlight – 5W IP65
This Fire Rated Fixed LED Downlight combines robust performance with a sleek finish, ideal for residential installations. Supplied with a 5W GU10 LED lamp, it's dimmable and compatible with Deta dimmers. With an IP65 rating and full fire resistance compliance, it's suitable for bathrooms and other high-moisture environments.
- Fire Rated & Regulation Compliant: Approved for 30-minute fire resistance and tested for I-joist and metal web joist constructions to meet Part B and Part E of Building Regulations.
- IP65 Rated: Provides full protection from dust and low-pressure water jets—ideal for bathroom zones and kitchens.
- Quick & Easy Installation: Features a patented spring-loaded GU10 holder, 3-way screwless terminal block, and insulation-coverable housing.
- Durable Build & Fit: Suitable for single and double plasterboard, with gasket for airflow and sound reduction (BS 5250).
Technical Specification
- Wattage: 5W LED
- Finish: Satin Chrome
- Luminous Output: 410 lumens
- Colour Temperature: 2800K (Warm White)
- IP Rating: IP65
- Cut-Out Size: 70–75mm
- Recess Depth: 120mm
- Fire Rating: 30 minutes (Part B compliant)
- Guarantee: 2 years
✅ Choose this chrome LED downlight for safe, stylish, and energy-efficient lighting—ideal for fire-rated, moisture-prone residential applications!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | MAINS VOLTAGE GU10 |
| Recess Depth | 107 mm |
| Ean Code | 5016211221504 |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | LED Lamp |
| Self-contained | N |
| Lamp Base | GU10 |
| Dimmable | Y |
| Wattage | 5 W |
| Ingress Protection | IP65 |
| Colour Temperature | 3000 K |
| Light Output | 410 Lm |
| Voltage | 240 V |
| Standards | BS EN 60598-1 BS EN 60598-2-2 BS EN 1365-2 BS 5250 |
| Cut-out Diameter | 70 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Lens |
| Led Driver Included? | Y |
| Emergency | N |
| Housing Material | Metal |
| Cover Colour | Prismatic |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | Satin Chrome |
| Overall Diameter | 85 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | Y |
| Housing Colour | Black |
