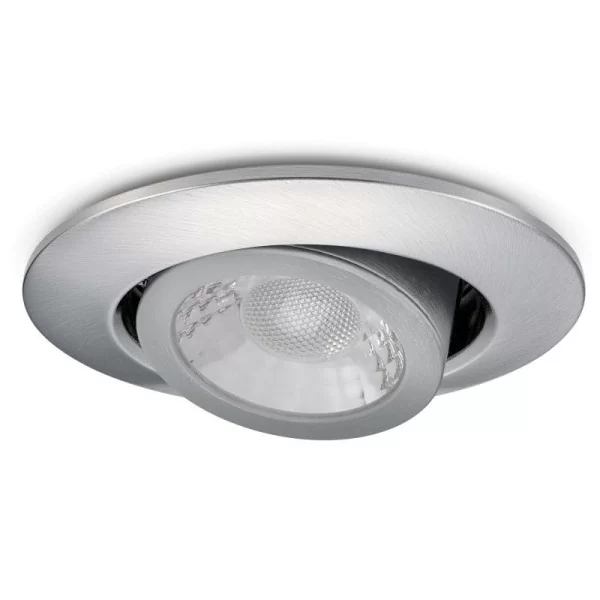

JCC Lighting JC1002/BN V50™ Series Brushed Nickel Colour Selectable Dimmable Adjustable LED Fire Rated Downlight With LevLink Connector IP20 6W 600/650Lm 240V
JC1002/BN
V50 Series Adjustable Dimmable IP20 LED Fire-Rated Downlight – Flexible & High-Performance Lighting
The V50 Series Adjustable LED Downlight offers versatile lighting with a simple 2-way switch located on the LED driver, allowing users to select between 3000K (Warm White) and 4000K (Cool White). With a tiltable and rotatable lens, this fire-rated downlight provides directional lighting, making it ideal for various applications.
- Selectable Colour Temperature: Easily switch between 3000K (Warm White) and 4000K (Cool White) via the driver.
- Ultra-Low Profile Design: Suitable for installations in shallow ceiling voids as low as 50mm.
- Fire-Rated for Safety: Certified for 30, 60, and 90-minute fire-rated ceilings.
- Adjustable Light Positioning: 20° tilt and 350° rotation for precise lighting control.
- Durable Spring Clips: Strong, protected clips ensure a secure and reliable fit.
- Fast Push-Fit Termination: Remote driver included for quick and efficient installation.
- High Lumen Output: 600lm (Warm White) / 650lm (Cool White) for bright and effective illumination.
- Triac Dimmable: Compatible with dimming systems for adjustable lighting levels.
- Long Lamp Life: Designed to last over 30,000 hours for extended reliability.
- IP20 Rating: Suitable for indoor dry environments.
Technical Specification:
- Cut-Out Size: 85mm Ø
- IP Rating: IP20
- Fire Rating: 30, 60, 90 minutes
- Adjustability: 20° tilt, 350° rotation
- Lumen Output: 600lm (3000K) / 650lm (4000K)
- Voltage: 230-240V
- Wattage: 6W
- Lamp Life: >30,000 hours
✅ Upgrade to the V50 Series Adjustable LED Downlight for precise, adaptable lighting with fire-rated safety!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | LED INTEGRATED |
| Recess Depth | 50 mm |
| Ean Code | 5052544081248 |
| Range | JCC V50 Series |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | LED Fixed |
| Self-contained | N |
| Dimmable | N |
| Wattage | 6 W |
| Ingress Protection | IP20 |
| Length | 380 mm |
| Average Lifespan | 51000 Hours |
| Beam Angle | 60 Degrees |
| Colour Temperature | 3000|4000 K |
| Light Output | 650 Lm |
| Colour Rendering Index | 80-89 |
| Voltage | 230-240 V |
| Energy Efficiency Class | F |
| Warranty | 2 Years |
| Unit Weight | 0.46 kg |
| Width | 84 mm |
| Standards | ISO9001-2015 ISO14001-2015 BS EN 60598:2015 2-1 2-2 |
| Ce Approved | Y |
| Cut-out Diameter | 85 mm |
| Mounting Type | Recessed |
| Height | 105 mm |
| Operating Temperature Range | 0|26 Degrees C |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Led Driver Included? | Y |
| Emergency | N |
| Housing Material | Steel |
| Cover Material | Polycarbonate |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | Brushed Nickel |
| Overall Diameter | 100 mm |
| Adjustability | Adjustable |
| Vandal Resistant | N |
| Ballast/starter Included | Y |
| Lamp(s) Included? | Y |
| Housing Colour | Brushed Nickel |
| Luminous Efficiency | 87 Lm/W |
