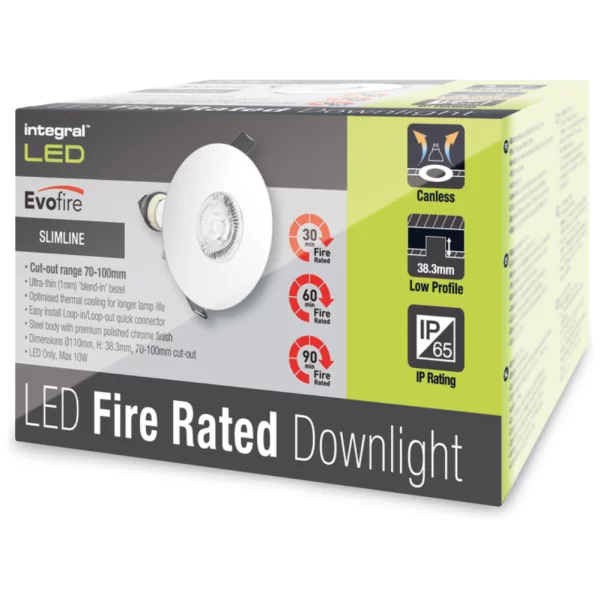

Integral LED ILDLFR70D021 EvoFire Polished Chrome Pressed Steel Round Fixed Fire-Rated LED Downlight With Glass Lens IP65 GU10 240V Dia ⌀: 112mm - Recess Depth: 38mm - Cut-Out: 70-100mm
ILDLFR70D021
Integral LED ILDLFR70D020 EvoFire Polished Chrome Fire-Rated Downlight with Insulation Guard IP65 GU10
The ILDLFR70D020 EvoFire Downlight combines safety and style, designed for GU10 or MR16 LED lamps. Its open design reduces heat build-up by up to 10°C compared to traditional canister-style fittings, extending lamp lifespan. Made from robust pressed steel with a polished chrome finish, it features an ultra-thin 1mm bezel that blends almost flush with ceilings for a sleek look. The built-in insulation guard allows loft insulation to be laid safely over the fitting without compromising airflow or fire rating.
- Advanced Heat Management: Open design prevents heat trapping, enhancing LED performance and longevity.
- Insulation Guard: Enables safe loft insulation installation maintaining airflow.
- Fire Rated Safety: Certified for 30, 60, and 90 minutes fire resistance per BS476 Part 21.
- Sleek Polished Chrome Finish: Slim 1mm bezel for a discreet ceiling appearance.
- Easy Installation: Loop-in/loop-out terminal block with supplied GU10 lamp holder.
Technical Specification
- Max Lamp Wattage: 50W
- Input Voltage: 220-240V AC
- Dimmable: Yes
- Lamp Base: GU10
- IP Rating: IP65
Dimensions
- Diameter: 112mm
- Depth: 83mm
- Cut-Out Diameter: 70-100mm
✅ Select the ILDLFR70D020 EvoFire for a premium polished chrome, fire-rated downlight with insulation guard and professional installation features.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | MAINS VOLTAGE GU10 |
| Recess Depth | 83 mm |
| Ean Code | 5055788238447 |
| Range | Integral EVOFire |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | GU10 |
| Self-contained | N |
| Lamp Base | GU10 |
| Dimmable | N |
| Ingress Protection | IP65 |
| Diameter | 112 mm |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.2 kg |
| Ce Approved | Y |
| Cut-out Diameter | 70-100 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Glass Cover |
| Led Driver Included? | N |
| Emergency | N |
| Housing Material | Steel |
| Cover Material | Glass |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | Polished Chrome |
| Overall Diameter | 112 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | N |
| Number Of Lamps | 1 |
