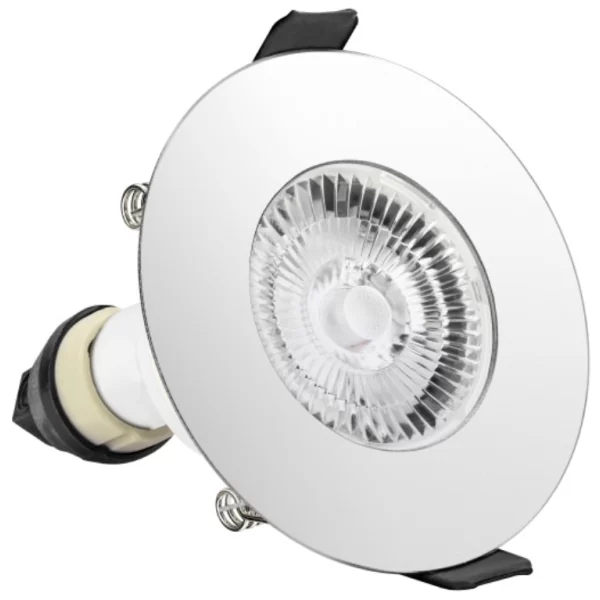

Integral LED ILDLFR70D017 EvoFire Polished Chrome Pressed Steel Round Fixed Fire-Rated LED Downlight With Glass Lens IP65 GU10 240V Dia ⌀: 85mm - Recess Depth: 39mm - Cut-Out: 70mm
ILDLFR70D017
Integral LED ILDLFR70D017 EvoFire Round Fire-Rated Downlight – Polished Chrome IP65 GU10
The ILDLFR70D017 EvoFire is a fixed fire-rated downlight designed for GU10 or MR16 LED lamps. Its open design improves airflow, allowing lamps to run up to 10°C cooler than traditional enclosed fire-rated downlights, extending lamp lifespan and performance. Made from durable pressed steel with a polished chrome finish, it features an ultra-thin 1mm bezel that fits almost flush to the ceiling for a sleek and modern appearance.
- Fire-Rated Safety: Tested to BS476 Part 21 for 30, 60, and 90 minutes fire resistance.
- Cool Running Design: Open housing reduces heat build-up to prolong LED life.
- Ultra-Thin Bezel: 1mm polished chrome bezel for a clean, discreet ceiling fit.
- Easy Installation: Loop-in/loop-out piano-key style terminal block with supplied GU10 lamp holder.
- IP65 Rated: Suitable for wet environments such as bathrooms and kitchens.
Technical Specification
- Max Lamp Wattage: 50W
- Input Voltage: 220–240V AC
- Dimmable: Yes (lamp dependent)
- Lamp Base: GU10
- IP Rating: IP65
Dimensions
- Diameter: 85mm
- Height: 39mm
- Cut-Out: 70mm
✅ Choose the ILDLFR70D017 EvoFire for a polished chrome, fire-safe downlight that combines style with professional performance.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | MAINS VOLTAGE GU10 |
| Recess Depth | 39 mm |
| Ean Code | 5055788238317 |
| Range | Integral EVOFire |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | GU10 |
| Self-contained | N |
| Lamp Base | GU10 |
| Dimmable | N |
| Ingress Protection | IP65 |
| Diameter | 85 mm |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.11 kg |
| Ce Approved | Y |
| Cut-out Diameter | 70 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Glass Cover |
| Led Driver Included? | N |
| Emergency | N |
| Housing Material | Steel |
| Cover Material | Glass |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | Polished Chrome |
| Overall Diameter | 85 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | N |
| Number Of Lamps | 1 |
