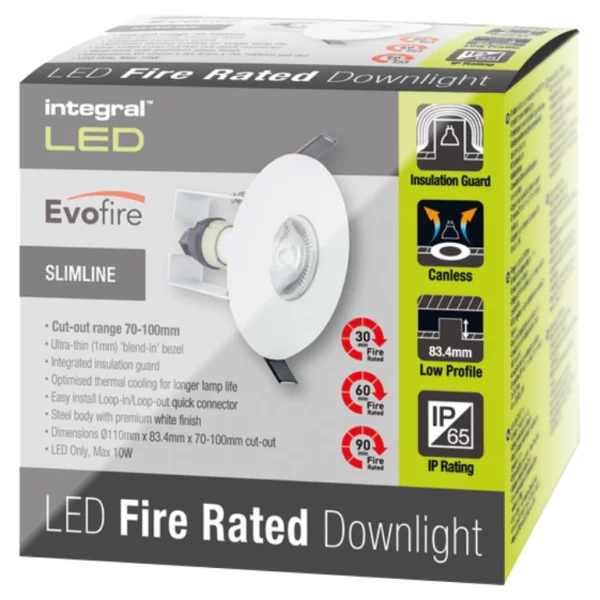

Integral LED ILDLFR70D013 EvoFire White Pressed Steel Round Fixed Fire-Rated LED Downlight With Glass Lens & Insulation Guard IP65 GU10 240V Dia ⌀: 112mm - Recess Depth: 38mm - Cut-Out: 70-100mm
ILDLFR70D013
Integral LED ILDLFR70D013 EvoFire Round Fire-Rated Downlight – Matt White IP65 GU10 with Insulation Guard
The ILDLFR70D013 EvoFire is a fixed, fire-rated round downlight with an extra-wide cut-out range (70–100mm), ideal for retrofit or oversized ceiling holes. Designed for GU10 LED lamps, it features a durable pressed steel body and ultra-thin bezel for a discreet finish. Its open structure supports better airflow and heat management, while the integrated insulation guard enables safe installation under loft insulation without compromising performance.
- Adjustable Cut-Out Compatibility: Fits ceiling openings from 70mm to 100mm with an expanded 112mm bezel.
- Insulation-Safe Design: Integrated guard allows insulation to be laid directly over the fitting.
- Certified Fire Protection: Tested for 30, 60, and 90-minute ratings to BS476 Part 21 standards.
- Slimline Bezel Profile: Only 1mm thick with a powder-coated white finish for a flush appearance.
- Quick Fit Terminal: Piano-key style loop-in/loop-out terminals and supplied GU10 lamp holder simplify installation.
Technical Specification
- Max Lamp Wattage: 50W
- Input Voltage: 220–240V AC
- Dimmable: Yes (lamp dependent)
- Lamp Base: GU10
- IP Rating: IP65
Dimensions
- Diameter: 112mm
- Depth: 83mm
- Cut-Out: 70–100mm
✅ Choose the EvoFire ILDLFR70D013 for professional-grade fire protection and flexible retrofit compatibility in modern LED installations.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | MAINS VOLTAGE GU10 |
| Recess Depth | 83 mm |
| Ean Code | 5055788236429 |
| Range | Integral EVOFire |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | GU10 |
| Self-contained | N |
| Lamp Base | GU10 |
| Dimmable | N |
| Ingress Protection | IP65 |
| Diameter | 112 mm |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.2 kg |
| Ce Approved | Y |
| Cut-out Diameter | 70-100 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Glass Cover |
| Led Driver Included? | N |
| Emergency | N |
| Housing Material | Steel |
| Cover Material | Glass |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | White |
| Overall Diameter | 112 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | N |
| Number Of Lamps | 1 |
