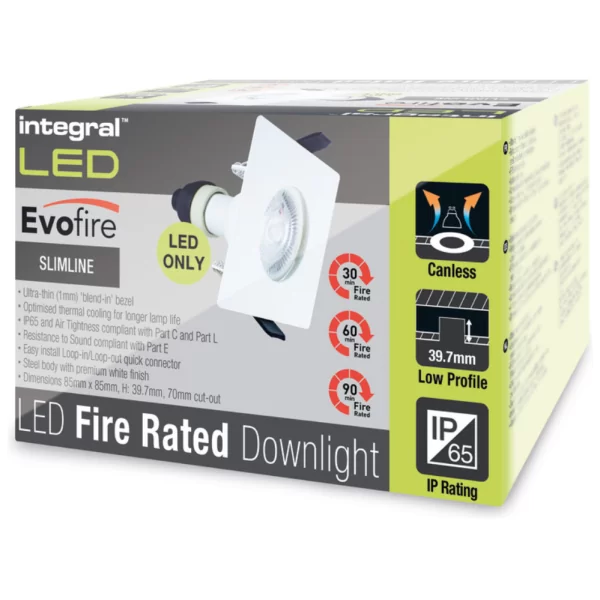

Integral LED ILDLFR70D007 EvoFire White Pressed Steel Square Fixed Fire-Rated LED Downlight With Glass Lens IP65 GU10 240V Length: 85mm - Width: 85mm - Recess Depth: 40mm - Cut-Out: 70mm
ILDLFR70D007
Integral LED ILDLFR70D007 EvoFire Square Fire-Rated Downlight – Matt White IP65 GU10, 85mm x 85mm
The ILDLFR70D007 EvoFire is a square, fixed fire-rated downlight designed for GU10 LED lamps. Featuring a sleek ultra-thin bezel and pressed steel body, this fitting provides safe, efficient lighting while enhancing aesthetics. Its fully open design allows better heat dissipation, supporting longer lamp life and performance.
- Fire-Rated for Safety: Tested for 30, 60, and 90-minute fire protection, maintaining ceiling integrity in compliance with BS476 Part 21.
- Ultra-Thin Square Bezel: 1mm low-profile bezel sits nearly flush with the ceiling for a clean, modern finish.
- Superior Airflow Design: Open-body design allows lamps to run cooler—up to 10°C lower than traditional can-style fittings.
- IP65 Rated Protection: Suitable for bathrooms, kitchens, and other wet areas.
- Quick Installation: Piano-key style loop-in/loop-out terminal block and GU10 lamp holder included for fast setup.
Technical Specification
- Max Lamp Wattage: 50W
- Input Voltage: 220–240V AC
- Dimmable: Yes (lamp dependent)
- Lamp Base: GU10
- IP Rating: IP65
Dimensions
- Length: 85mm
- Width: 85mm
- Recess Depth: 40mm
- Cut-Out: 70mm
✅ Choose the EvoFire Square Downlight for fire-rated safety, ultra-slim design, and superior GU10 lamp performance.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | MAINS VOLTAGE GU10 |
| Recess Depth | 40 mm |
| Ean Code | 5055788228622 |
| Range | Integral EVOFire |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | GU10 |
| Self-contained | N |
| Lamp Base | GU10 |
| Dimmable | N |
| Ingress Protection | IP65 |
| Length | 85 mm |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.07 kg |
| Width | 85 mm |
| Ce Approved | Y |
| Cut-out Diameter | 70 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Glass Cover |
| Led Driver Included? | N |
| Emergency | N |
| Housing Material | Steel |
| Cover Material | Glass |
| Cover Colour | Clear |
| Face Shape | Square |
| Corrosion Resistant | N |
| Bezel/trim Colour | White |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | N |
| Number Of Lamps | 1 |
