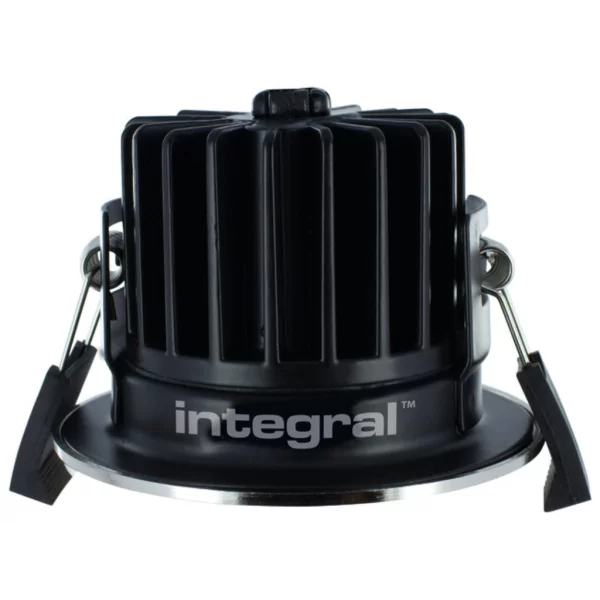

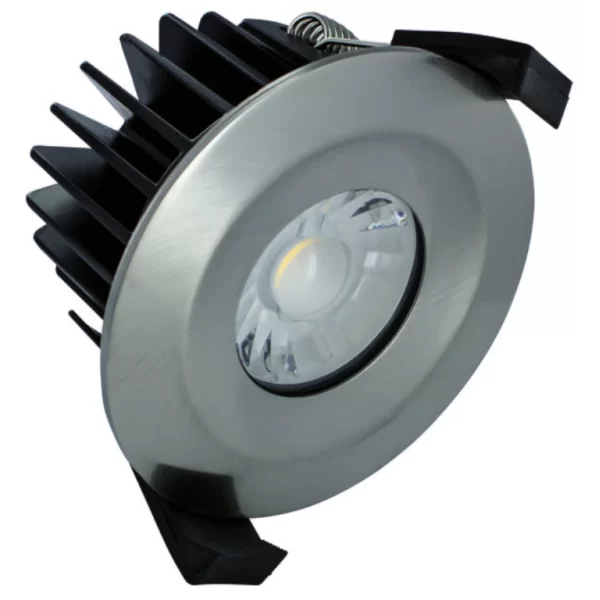

Integral LED ILDLFR70B017 Low Profile Series Satin Nickel Pressed Steel Dimmable Fixed Fire-Rated LED Downlight With Clear Lens & Cool White LEDs IP65 10W 850Lm 240V Dia ⌀: 85mm - Recess Depth: 58mm - Cut-Out: 70-75mm
ILDLFR70B017
Integral LED Low Profile Fire-Rated Downlight – 10W, 4000K Cool White, IP65, Satin Nickel Bezel, 70–75mm Cut-Out, Dimmable
The Integral ILDLFR70B017 Fire-Rated Downlight delivers powerful, cool white illumination in a sleek low-profile format. With a stylish satin nickel bezel, full fire and IP65 protection, and high 850-lumen output, this 10W dimmable unit is ideal for modern kitchens, bathrooms, and commercial settings.
- Bright Cool White Output: Produces 850 lumens at 4000K with a 38° beam angle – perfect for crisp general lighting.
- Compliant with UK Building Regs: Fire rated to 30, 60, and 90 minutes and tested for Parts B, C, L, and E.
- Dimmable for Lighting Control: Works with most dimmers for flexible light levels in a range of spaces.
- IP65 Rated & Stylish Finish: Supplied with satin nickel bezel and water-resistant for use in bathrooms and kitchens.
- Low-Profile & Easy to Install: Slim 58mm depth with loop-in loop-out driver for fast, tidy wiring.
Technical Specification
- Power: 10W (Equivalent to 62W)
- Input Voltage: 220–240V AC
- Luminous Flux: 850lm (85lm/W)
- Colour Temperature: 4000K Cool White
- Cut-Out Size: 70–75mm Ø
✅ Choose the Integral 10W Satin Nickel Downlight for a powerful, regulation-ready solution with modern looks and cool white clarity!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | LED INTEGRATED |
| Recess Depth | 58 mm |
| Ean Code | 5055788229278 |
| Range | Integral Low Profile |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | LED Fixed |
| Self-contained | N |
| Dimmable | Y |
| Wattage | 10 W |
| Ingress Protection | IP65 |
| Diameter | 85 mm |
| Beam Angle | 38 Degrees |
| Colour Temperature | 4000 K |
| Light Output | 850 Lm |
| Colour Rendering Index | >80 |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.38 kg |
| Standards | EN 60598 |
| Ce Approved | Y |
| Cut-out Diameter | 75 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Clear Cover |
| Led Driver Included? | Y |
| Emergency | N |
| Housing Material | Aluminium |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | Satin Nickel |
| Overall Diameter | 85 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | Y |
| Housing Colour | Black |
| Luminous Efficiency | 85 Lm/W |
