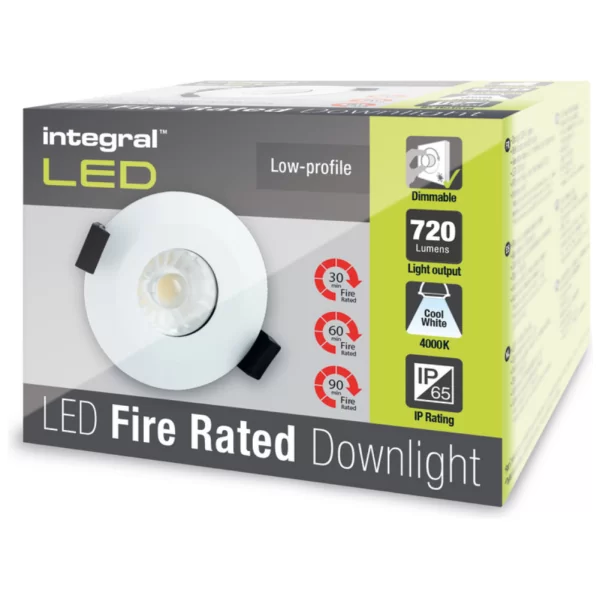

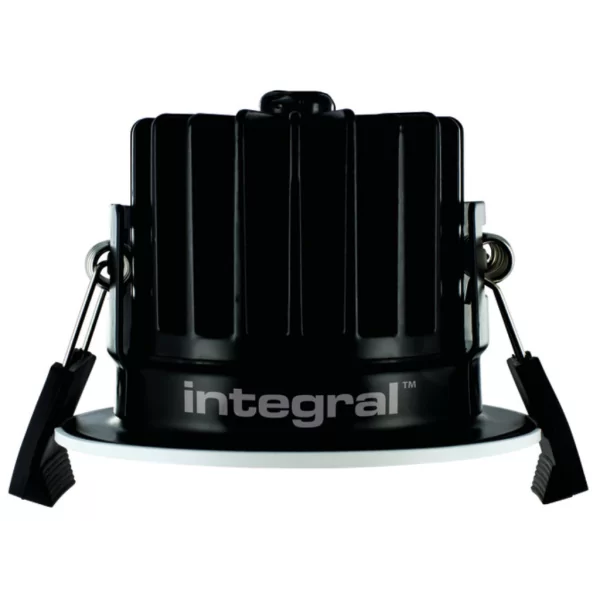

Integral LED ILDLFR70B011 Low Profile Series Matt White Pressed Steel Dimmable Fixed Fire-Rated LED Downlight With Clear Lens & Cool White LEDs IP65 8.5W 660Lm 240V Dia ⌀: 85mm - Recess Depth: 58mm - Cut-Out: 70-75mm
ILDLFR70B011
Integral LED Low Profile Fire-Rated Downlight – 8.5W, 4000K Cool White, IP65, 70–75mm Cut-Out, Dimmable
The Integral ILDLFR70B011 Fire-Rated Downlight delivers bright, efficient cool white lighting in a compact, low-profile housing. With full fire protection, IP65 water resistance, and dimmable control, this 8.5W downlight is ideal for modern commercial and domestic environments, including bathrooms and kitchens.
- High Output Cool White: Produces 660 lumens at 4000K with a 60° beam angle for clean, neutral lighting.
- Fully Compliant Design: Fire rated to 30, 60, and 90 minutes and meets Parts B, C, L, and E of UK building regulations.
- Dimmable Functionality: Works with compatible dimmers for adaptable lighting control across various spaces.
- IP65 Water Resistant: Ideal for wet areas such as bathrooms, en-suites, and kitchens.
- Quick Installation: Supplied with loop-in loop-out driver for efficient wiring and reduced install time.
Technical Specification
- Power: 8.5W (Equivalent to 51W)
- Input Voltage: 220–240V AC
- Luminous Flux: 660lm (78lm/W)
- Colour Temperature: 4000K Cool White
- Cut-Out Size: 70–75mm Ø
✅ Choose the Integral 8.5W Cool White Downlight for a compliant, powerful, and space-saving solution in fire-rated and wet-zone installs!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | LED INTEGRATED |
| Recess Depth | 58 mm |
| Ean Code | 5055788225218 |
| Range | Integral Low Profile |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | LED Fixed |
| Self-contained | N |
| Dimmable | Y |
| Wattage | 8.5 W |
| Ingress Protection | IP65 |
| Diameter | 85 mm |
| Beam Angle | 60 Degrees |
| Colour Temperature | 4000 K |
| Light Output | 660 Lm |
| Colour Rendering Index | >80 |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.28 kg |
| Standards | EN 60598 |
| Ce Approved | Y |
| Cut-out Diameter | 70-75 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Clear Cover |
| Led Driver Included? | Y |
| Emergency | N |
| Housing Material | Aluminium |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | White |
| Overall Diameter | 85 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | Y |
| Housing Colour | Black |
| Luminous Efficiency | 78 Lm/W |
