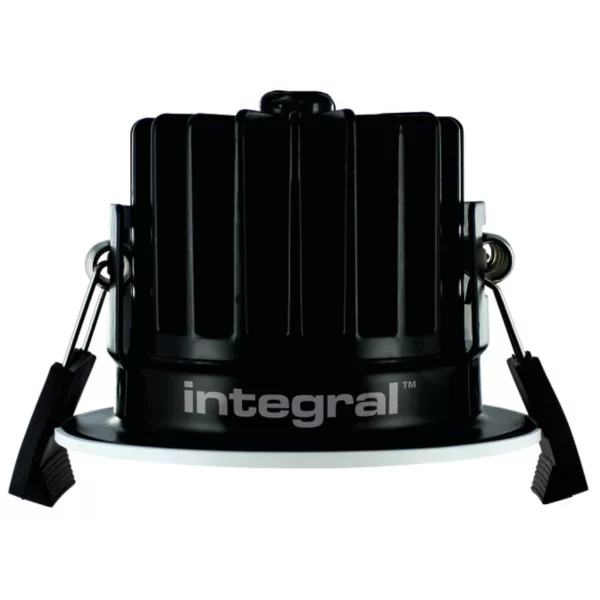

Integral LED ILDLFR70B002 Low Profile Series Matt White Pressed Steel Non-Dimmable Fixed Fire-Rated LED Downlight With Clear Lens & Warm White LEDs IP65 6W 430Lm 240V Dia ⌀: 85mm - Recess Depth: 58mm - Cut-Out: 70mm
ILDLFR70B002
Integral LED Low Profile Fire-Rated Downlight – 6W, 3000K Warm White, IP65, 70–75mm Cut-Out, Non-Dimmable
The Integral ILDLFR70B002 Fire-Rated Downlight delivers cost-effective fire protection and consistent warm white lighting in a slim, space-saving design. Ideal for residential and commercial use, it is IP65 rated and tested for full compliance with fire, air, and acoustic building regulations.
- Fire & Building Regulation Compliant: Fire rated to 30, 60 and 90 minutes and compliant with Parts B, C, L, and E.
- Compact & Reliable: 58mm recessed depth makes it suitable for installations with limited ceiling space.
- Warm White Output: 3000K COB LED produces 430 lumens with a focused 38° beam angle.
- IP65 Rated: Fully sealed for use in kitchens, bathrooms, and other wet zones.
- Quick Installation: Supplied with loop-in loop-out driver for efficient wiring and setup.
Technical Specification
- Power: 6W (Equivalent to 40W)
- Input Voltage: 220–240V AC
- Luminous Flux: 430lm (72lm/W)
- Colour Temperature: 3000K Warm White
- Cut-Out Size: 70–75mm Ø
✅ Opt for the Integral Low Profile Downlight for safe, straightforward lighting in fire-rated and IP65-rated environments!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | LED INTEGRATED |
| Recess Depth | 58 mm |
| Ean Code | 5055788223399 |
| Range | Integral Low Profile |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | LED Fixed |
| Self-contained | N |
| Dimmable | N |
| Wattage | 6 W |
| Ingress Protection | IP65 |
| Diameter | 85 mm |
| Beam Angle | 38 Degrees |
| Colour Temperature | 3000 K |
| Light Output | 430 Lm |
| Colour Rendering Index | >80 |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.28 kg |
| Standards | EN 60598 |
| Ce Approved | Y |
| Cut-out Diameter | 70-75 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Clear Cover |
| Led Driver Included? | Y |
| Emergency | N |
| Housing Material | Aluminium |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | White |
| Overall Diameter | 85 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | Y |
| Housing Colour | Black |
| Luminous Efficiency | 72 Lm/W |
