Ansell Lighting APRIPGXM/1 Prism Pro XM Gimbal Fire Rated LED Dimmable Downlight, Colour and Wattage Select 2700K-6000K, 5W & 7W IP65

APRIPGXM/1

40 in stock for next day delivery see cut off times
162 in stock for 2-3 day delivery see more info
£12.59 inc Vat
£10.49 ex Vat
Trustpilot
Trustpilot
Free delivery for orders over £100 ex VAT

Ansell Prism Pro XM Gimbal Fire Rated LED Downlight – Dimmable, Colour & Wattage Selectable, IP65

The Ansell Prism Pro XM Gimbal Downlight is a versatile, fire-rated LED solution designed for residential and hospitality applications. Featuring adjustable tilt, selectable wattage and 4CCT options in one fitting, it offers flexibility on site while maintaining full compliance with current Building Regulations.

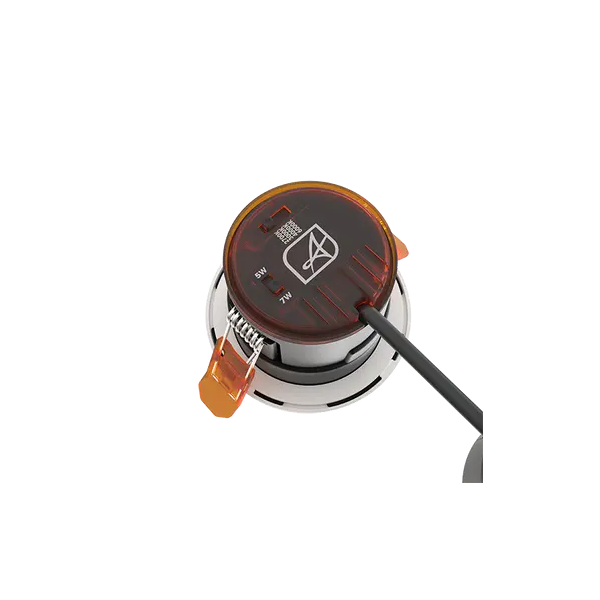

  • Selectable Wattage & 4CCT: Choose between 5W and 7W outputs and select 2700K, 3000K, 4000K or 6000K to suit the installation.
  • Adjustable Gimbal Design: 30° tilt angle with a wide 70° beam angle for directional lighting and feature highlighting.
  • Fire Rated & Regulation Compliant: Tested for 30, 60 and 90 minute ceiling types and compliant with Parts B, E and L of Building Regulations.

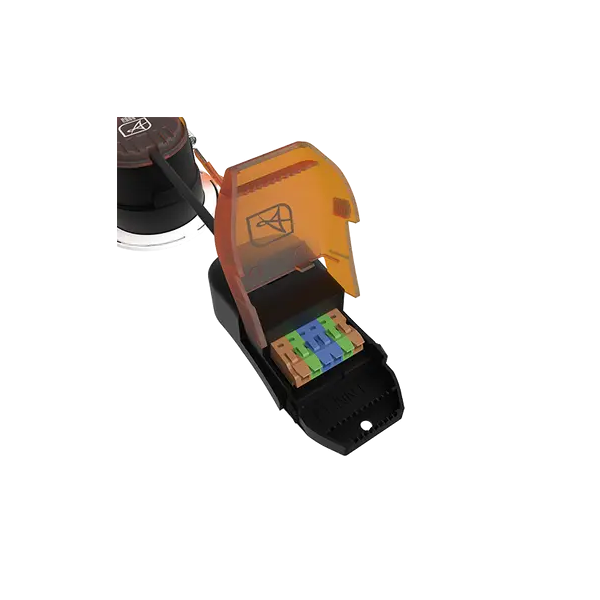

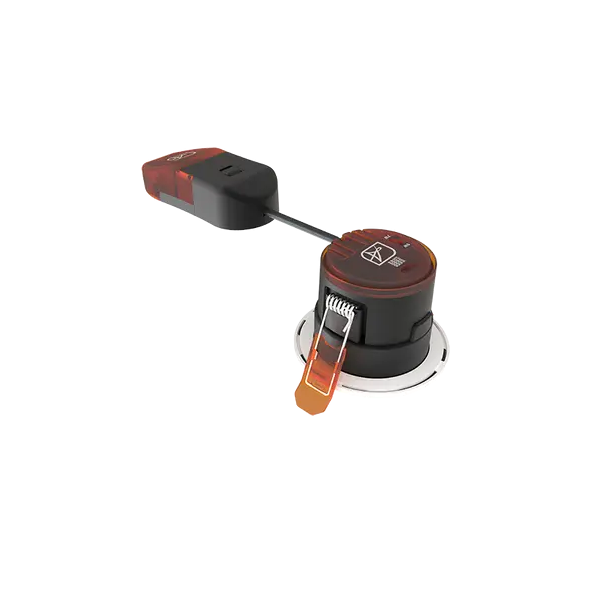

  • Fast & Simple Installation: Two-part detachable connector with fast-fit plug and lever terminals for quick first-fix wiring and final connection.
  • Modular & Sustainable Construction: Patent-approved design with replaceable light engine and driver, TM66 2.5 assessed.
Technical Specification
  • Wattage: 5W / 7W selectable
  • Light Output: 640–820 lumens (4000K) – up to 135lm/W
  • Colour Temperature: 2700K / 3000K / 4000K / 6000K selectable
  • IP Rating: IP65
  • Dimensions: 88mm Ø x 63mm (H), 72mm cut-out

✅ A flexible, fire-rated gimbal downlight delivering adjustable performance and efficient installation for professional projects.

Technical Information
Downlight Type LED INTEGRATED
Range Ansell Prism Pro XM
Product LED Fire Rated Downlight
Type CCT
Lamp Type LED Fixed
Dimmable Y
Wattage 5|7 W
Ingress Protection IP65
Colour Temperature 2700|6500 K
Cut-out Diameter 72 mm
Fire Rated Y
Emergency N
Bezel/trim Colour White
Adjustability Adjustable
