Channel Safety E/BK/M3/LED/3/LI Brook3 Polycarbonate 3 Hour Maintained Emergency LED Bulkhead Luminaire With Clear Diffuser IP65 7.3W 240V
E/BK/M3/LED/3/LI

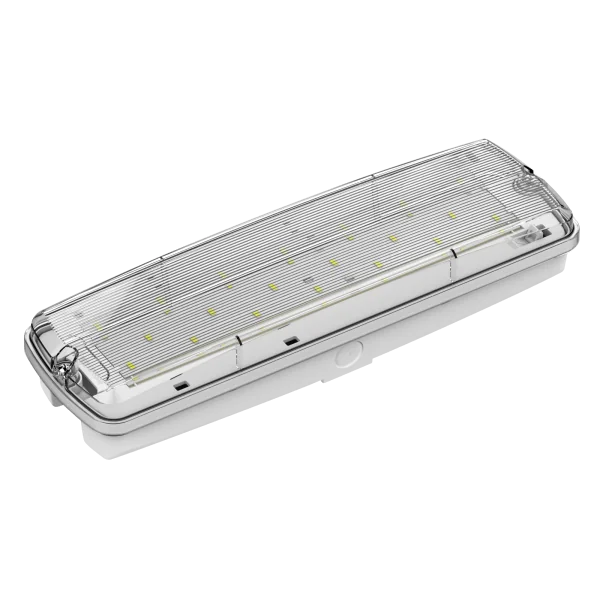

Channel Safety Brook 3 LED Bulkhead Light - IP65 Rated
The Brook 3 LED Bulkhead is a versatile lighting solution suitable for both indoor and outdoor use. With an IP65 rating, it offers excellent protection against dust and water ingress, ensuring durability in a variety of environments. Designed to be energy efficient, it consumes 7.3W of power—up to 80% less than an equivalent 8W fluorescent light. Equipped with emergency backup options and a robust polycarbonate construction, the Brook 3 is perfect for reliable and efficient illumination.
- Energy Efficient: Uses 80% less power compared to 8W fluorescent fittings, saving on energy costs.
- Emergency Backup: Offers maintained or non-maintained 3-hour emergency mode with a lumen output of 210lm.
- Durable Construction: Made with a robust polycarbonate diffuser and body for long-lasting performance.
- Flexible Installation: Can be used in a range of internal and external settings due to its IP65 rating.
- Remote Testing Ready: Compatible with remote control testing for ease of maintenance.
Technical Specification
- Dimensions: 115mm (H) x 350mm (W) x 75mm (D)
- Cut-Out Dimensions (for Bezel): 83mm (H) x 337mm (W)
- Light Source: LED (20 LEDs in unit)
- Power Consumption: 7.3W
- Lumen Output: 320lm (210lm in emergency mode)
- Material: Polycarbonate diffuser and body
- IP Rating: IP65
- Emergency Options: Maintained or non-maintained 3-hour backup
- Weight: 0.95kg
- Compliance: BS EN 60598-2-22 and relevant standards
✅ Choose the Channel Safety Brook 3 LED Bulkhead for durable, energy-efficient lighting with emergency backup options for indoor or outdoor use.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Product | LED Emergency Bulkhead |
| Type | Maintained |
| Lamp Type | LED Fixed |
| Self-contained | Y |
| Wattage | 7.3 W |
| Ingress Protection | IP65 |
| Length | 350 mm |
| Light Output | 320 Lm |
| Voltage | 230 V |
| Unit Weight | 0.95 kg |
| Width | 115 mm |
| Depth | 75 mm |
| Standards | BS EN 60598-2-22 |
| Emergency Duration | 3 Hours |
| Emergency Type | Maintained/Non-Maintained |
| Ce Approved | Y |
| Mounting Position | Ceiling/Wall |
| Fire Rated | N |
| Emergency | Y |
| Housing Material | Polycarbonate |
| Cover Material | Polycarbonate |
| Face Shape | Rectangular |
| Adjustability | Fixed |
| Housing Colour | White |
