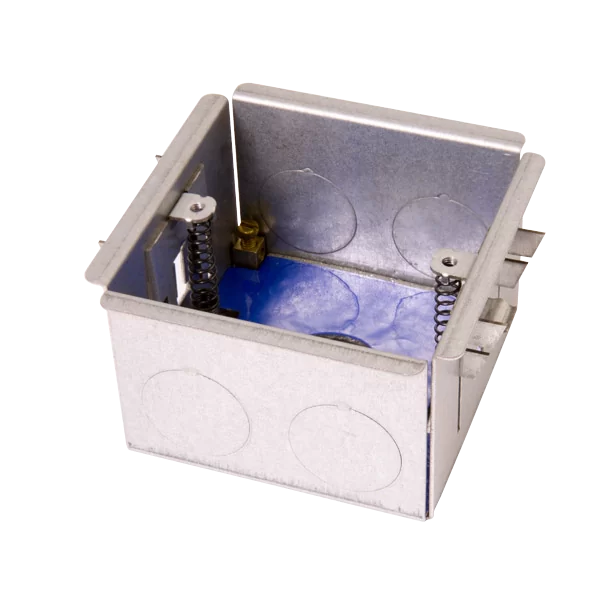

Click WA4147 Flameguard 1 Gang Metal Fire Resistant Dry Lining Box With Intumescent Layer 47mm Depth
WA4147
Click WA4147 Flameguard 1 Gang 47mm Metal Dry Lining Box – Fire & Acoustic Rated for Deep Installations
The Click WA4147 Flameguard Dry Lining Box offers reliable fire and sound resistance in a deeper 47mm profile, making it ideal for installations requiring more wiring space. Designed for compliance and ease, it installs just like a standard dry lining box while providing up to 90 minutes of fire protection.
- Enhanced Fire & Acoustic Rating: Certified to BS EN 1363-1, BS EN 1364-1, BS EN ISO 140-3, and BS EN ISO 717-1 standards.
- 90-Minute Fire Resistance: Fire tested with back-to-back installation capability for added flexibility.
- Building Regulation Compliant: Meets requirements for fire and acoustic performance in modern construction.
- Intumescent Layer: Expands under heat to maintain the integrity of fire-rated walls and partitions.
- Quick, Familiar Fit: Designed for rapid installation using standard dry lining methods.
Technical Specification
- Brand: Click
- Product Code: WA4147
- Type: 1 Gang Metal Dry Lining Box
- Depth: 47mm
- Cutout Size: 73mm x 73mm
✅ Install the Click WA4147 Flameguard for deeper, regulation-compliant fire-rated back box solutions in dry lining applications!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Protection Type | Intumescent Composite |
| Ean Code | 5055287011688 |
| Range | Scolmore Flameguard |
| Product | Dry Lining Box |
| Type | Single 47mm Depth |
| Length | 82 mm |
| Number Of Gangs | 1 |
| Earth Included | Y |
| Warranty | 10 Years |
| Multi Compartment | N |
| Number Of Entries | 5 |
| Mounting | Flush |
| Material | Galvanised Steel |
| Depth | 35 mm |
| Finish | Galvanised |
| Standards | BS 4662 BS EN 1364-1 BS EN ISO 10140-2 |
| Qualifier | Click Essentials Back Boxes WA4147 1 Gang 47mm Deep FlameGuard® Dry Lining Box |
| Fixings Included | N |
| Knockouts Included? | Y |
| Number Of Knockouts | 5 |
| Knockout Shape | 5 x 25mmØ |
| Height | 82 mm |
| Nominal Width | 82 mm |
| Operating Temperature Range | -5 to +40 Degrees C |
| Included Fixings | N |
