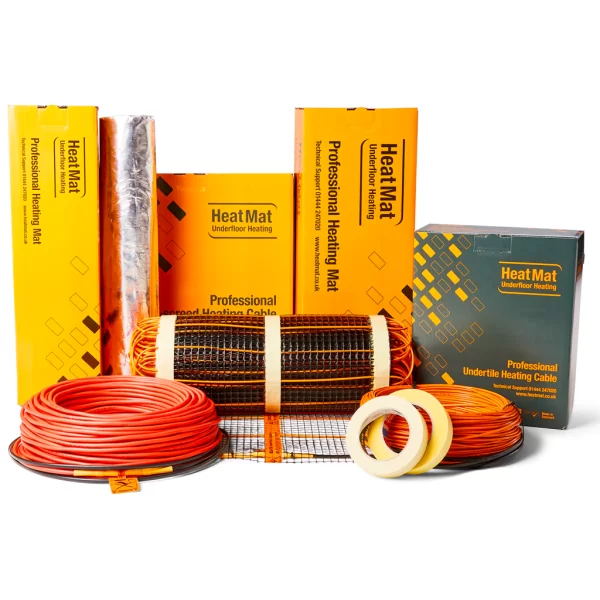

Heatmat PKM-160-1040 Pro-Range Underfloor Heating Mats W: 0.5m x L: 20.8m - Coverage: 10.4m² - 1700W 230V 160W/m²
PKM-160-1040
Heat Mat PKM-160-1040 Pro-Range Underfloor Heating Mat – 10.4m² Coverage, 160W/m² for Large-Scale Floor Heating Projects
The Heat Mat PKM-160-1040 from the Pro-Range delivers robust electric underfloor heating for expansive floor areas, with 1700W of total output across 10.4m². Its 3mm twin-conductor cable is pre-attached to fibreglass mesh for easy installation and full compliance with modern wiring regulations.
- Large Area Coverage: Provides 160W/m² of heat output, delivering 1700W across 10.4m² for effective floor warming.

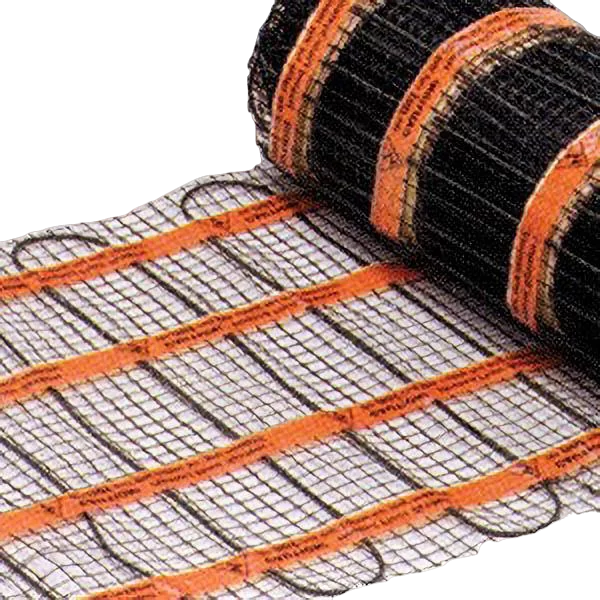

- Low-Profile Design: Slim 3mm twin-conductor cable pre-bonded to 0.5m mesh ensures a smooth, even install beneath finished floors.
- Custom Layout Options: Cut and rotate the mesh or remove cable as needed to navigate around fixed features or complex layouts.
- Regulation-Compliant Shielding: Fully earth shielded with aluminium to meet 17th Edition IEE Wiring Regulations—no extra earthing grid needed.
- Multi-Finish Compatibility: Suitable beneath tile, stone, bonded wood, carpet, and vinyl when used with Thermoplan levelling compound.
Technical Specification
- Voltage: 230V AC, 50Hz
- Power Output: 1700W total (160W/m²)
- Dimensions: 0.5m (W) x 20.8m (L) – 10.4m² coverage
- Wire Thickness: 2.7mm to 3.2mm
- IP Rating: IPX7
✅ Rely on the Heat Mat PKM-160-1040 for safe, efficient, and regulation-ready underfloor heating across large installations!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| C/w Humidistat | N |
| C/w Pullcord | N |
| Ean Code | 5060424142477 |
| Range | Heatmat Pro-Range |
| Coverage | 10.4 Square metres |
| C/w Thermostat | Y |
| Conductor | Twin |
| Product | Underfloor Heating |
| Type | Underfloor Heating Mat |
| Wattage | 1700 W |
| Length | 2200|20800 mm |
| Voltage | 230/240 V |
| Use | Domestic |
| Width | 500 mm |
| Standards | EN 60335-1/2-17 IEC 60730 |
| Qualifier | Under Floor |
| Nominal Power Output | 160 Watts (W)/Metre |
| Ce Approved | Y |
| C/w Cable | Y |
