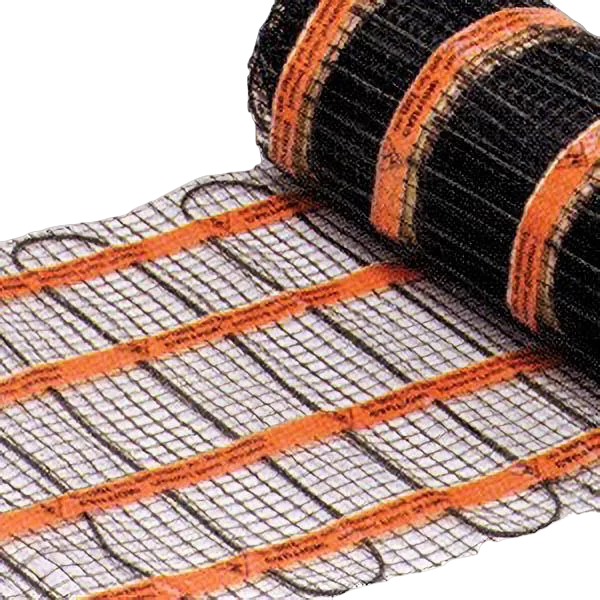

Heatmat PKM-160-0680 Pro-Range Underfloor Heating Mats W: 0.5m x L: 13.6m - Coverage: 6.8m² - 1113W 230V 160W/m²
PKM-160-0680
Heat Mat PKM-160-0680 Pro-Range Underfloor Heating Mat – 6.8m² Coverage, 160W/m² for Large, Compliant Heating Installations
The Heat Mat PKM-160-0680 Pro-Range underfloor heating mat is built for high-output applications, delivering 1113W across 6.8m². With a 3mm twin-conductor cable pre-fixed to a fibreglass mesh, it provides reliable, regulation-compliant heating for a wide range of floor types in both domestic and commercial settings.
- High Output Performance: 160W/m² output across 6.8m² delivers 1113W of consistent and efficient heating.
- Slimline Cable Structure: 3mm ultra-thin twin-conductor cable ensures low-profile installation beneath a variety of floor finishes.
- Flexible Installation: Mat can be cut, turned or the cable lifted from mesh to navigate awkward layouts and maximise coverage.
- Regulation Compliant: Fully aluminium earth shielded to meet 17th Edition IEE Wiring Regulations—no separate earthing grid needed.
- Multi-Floor Compatibility: Suitable beneath tile, stone, carpet, bonded wood and vinyl when used with a levelling compound.
Technical Specification
- Voltage: 230V AC, 50Hz
- Power Output: 1113W total (160W/m²)
- Dimensions: 0.5m (W) x 13.6m (L) – 6.8m² coverage
- Wire Thickness: 2.7mm to 3.2mm
- IP Rating: IPX7
✅ Choose the Heat Mat PKM-160-0680 for large-scale, regulation-ready electric underfloor heating you can trust!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| C/w Humidistat | N |
| C/w Pullcord | N |
| Ean Code | 5060424142446 |
| Range | Heatmat Pro-Range |
| Coverage | 6.8 Square metres |
| C/w Thermostat | Y |
| Conductor | Twin |
| Product | Underfloor Heating |
| Type | Underfloor Heating Mat |
| Wattage | 1113 W |
| Length | 13600 mm |
| Voltage | 230/240 V |
| Use | Domestic |
| Width | 500 mm |
| Standards | BEAB |
| Qualifier | Under Floor |
| Nominal Power Output | 1113 Watts (W)/Metre |
| Ce Approved | Y |
| C/w Cable | Y |
