Heatmat PKM-160-0150 Pro-Range Underfloor Heating Mats W: 0.5m x L: 3.0m - Coverage: 1.5m² - 245W 230V 160W/m²
PKM-160-0150
Heat Mat PKM-160-0150 Pro-Range Underfloor Heating Mat – 1.5m² Coverage, 160W/m² for Reliable Electric Floor Heating

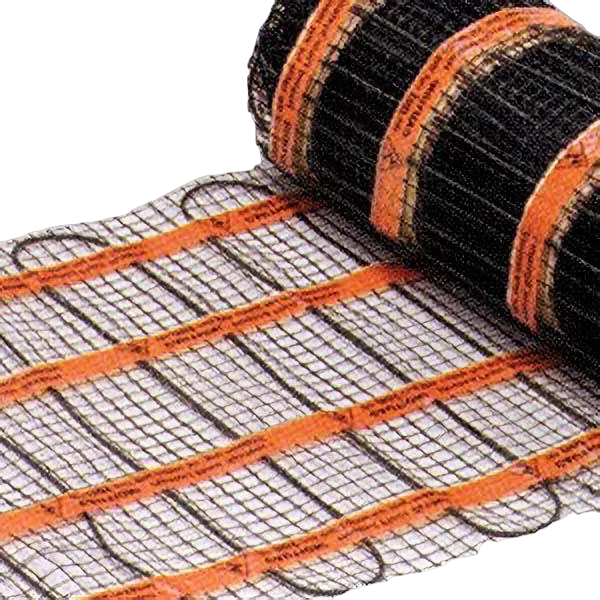

The Heat Mat PKM-160-0150 from the Pro-Range delivers professional-grade electric underfloor heating performance, with a twin-conductor, earth-shielded cable fixed to a 0.5m wide fibreglass mesh. Suitable for use beneath a wide range of floor finishes, it ensures safety, compliance, and fast, flexible installation.
- Consistent Heat Output: 160W/m² mat delivers 245W total power across 1.5m² – ideal for tile, stone, and compatible soft coverings.
- Low-Profile Cable Design: 3mm ultra-thin heating cable securely pre-attached to mesh for a flat finish and cable protection during install.
- Full Floor Coverage: Mat can be cut and rotated or cable lifted for precise placement around obstacles.
- Compliant & Safe: Fully earth shielded to meet 17th Edition IEE Wiring Regulations, unlike unearthed carbon film systems.
- Multi-Finish Compatibility: Suitable for carpet, bonded wood, vinyl (with levelling compound), as well as tile and stone surfaces.
Technical Specification
- Voltage: 230V AC, 50Hz
- Power Output: 245W total (160W/m²)
- Dimensions: 0.5m (W) x 3.0m (L) – 1.5m² coverage
- Wire Thickness: 2.7mm to 3.2mm
- IP Rating: IPX7
✅ Trust the Heat Mat Pro-Range for efficient, regulation-compliant underfloor heating in any professional project!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| C/w Humidistat | N |
| C/w Pullcord | N |
| Ean Code | 5060424142354 |
| Range | Heatmat Pro-Range |
| Coverage | 1.5 Square metres |
| C/w Thermostat | Y |
| Conductor | Twin |
| Product | Underfloor Heating |
| Type | Underfloor Heating Mat |
| Wattage | 245 W |
| Length | 3000 mm |
| Voltage | 230/240 V |
| Use | Domestic |
| Width | 500 mm |
| Standards | BEAB |
| Qualifier | Under Floor |
| Nominal Power Output | 245 Watts (W)/Metre |
| Ce Approved | Y |
| C/w Cable | Y |
