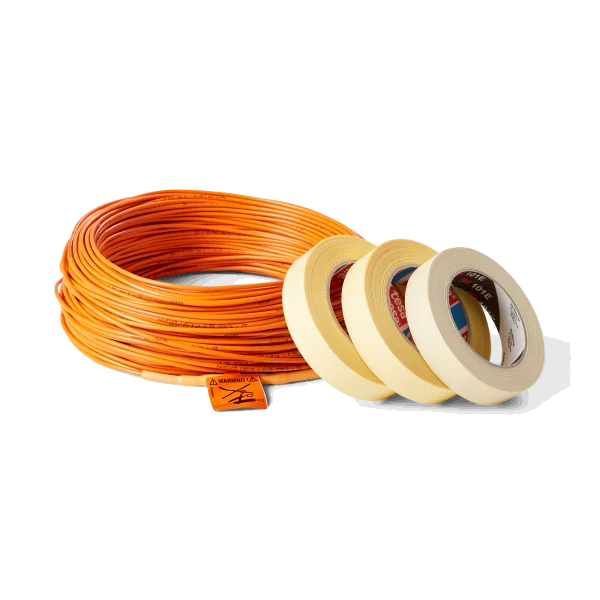

Heatmat PKC-3.0-0120 Dual Conductor + Earth 3mm Undertile Heating Cable Length : 9.4m - 120W 230V
PKC-3.0-0120
Flexible, ultra-thin, universal 3mm underfloor heating cable
A flexible simple to fit heating system designed to provide energy efficient floor warming or a full heating system as desired. This electric underfloor heating cable is particularly suited to small or complicated areas where heating mats can be more complicated to install.
The systems output is varied by altering the spacing of the heating cable, allowing 200W/m² to be installed in conservatories and similar high heat loss areas. An additional benefit of this system is that it can be used beneath virtually any floor covering if covered with a levelling compound and installed with an output of no more than 160W/m².
mm Heating Cable 14 W/m Technical Specification
| Product Code | Length (m) | Ohms ( ) |
Watts (W) | Coverage at 200 W/m² | Coverage at 150 W/m² | TSI | GTIN |
|---|---|---|---|---|---|---|---|
| PKC-3.0-0120 | 9.4 | 451 | 120 | 0.6 | 1.2 | 436272172 | 5707359512127 |
| PKC-3.0-0190 | 15.3 | 277 | 190 | 1.0 | 1.9 | 436272282 | 5707359512134 |
| PKC-3.0-0290 | 22.8 | 185 | 290 | 1.5 | 2.9 | 436272392 | 5707359512141 |
| PKC-3.0-0370 | 29.7 | 143 | 370 | 1.9 | 3.7 | 436272428 | 5707359512158 |
| PKC-3.0-0470 | 37.5 | 113 | 470 | 2.4 | 4.7 | 436272431 | 5707359512165 |
| PKC-3.0-0550 | 43.8 | 96 | 550 | 2.8 | 5.5 | 436272444 | 5707359512172 |
| PKC-3.0-0650 | 52.5 | 81 | 650 | 3.3 | 6.5 | 436272457 | 5707359512189 |
| PKC-3.0-0840 | 67.0 | 63 | 840 | 4.2 | 8.4 | 436272460 | 5707359512196 |
| PKC-3.0-0980 | 79.0 | 54 | 980 | 4.9 | 9.8 | 436272473 | 5707359512202 |
| PKC-3.0-1090 | 87.0 | 49 | 1090 | 5.5 | 10.9 | 436272185 | 5707359512219 |
| PKC-3.0-1230 | 98.0 | 43 | 1230 | 6.2 | 12.3 | 436272198 | 5707359512226 |
| PKC-3.0-1370 | 110.0 | 39 | 1370 | 6.9 | 13.7 | 436272208 | 5707359512233 |
| PKC-3.0-1630 | 130.0 | 33 | 1630 | 8.2 | 16.3 | 436272211 | 5707359512240 |
| PKC-3.0-1770 | 142.0 | 30 | 1770 | 8.9 | 17.7 | 436272224 | 5707359512257 |
| PKC-3.0-1920 | 153.0 | 28 | 1920 | 9.6 | 19.2 | 436272237 | 5707359512264 |
| PKC-3.0-2170 | 174.0 | 24 | 2170 | 10.9 | 21.7 | 436272240 | 5707359512271 |
| Range | Heatmat PKC Cable |
| Product | Underfloor Heating |
| Type | UFH Cable |
| Wattage | 120 W |
