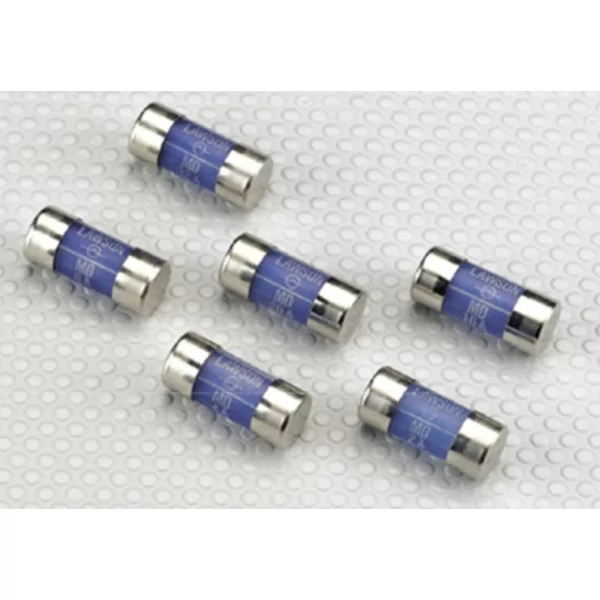

Lawson MD32 Type MD BS88, IEC60269-1 General Purpose Fuse Link 32 Amps 415V ac L:29mm x Dia ⌀: 12.7mm

Lawson MD32 Type MD BS88 General Purpose Fuse Link – 32A 415V AC, High-Capacity Protection for Industrial Circuits

The Lawson MD32 is a 32A cylindrical general purpose fuse link designed for use in high fault level three-phase sub-circuits. Fully compliant with BS88: Part 1 and IEC60269-1, and ASTA certified, it offers a high breaking capacity of 80kA at 415V AC, making it ideal for industrial and commercial protection requirements.

• Industrial-Grade Fuse: Designed for three-phase sub-circuits in industrial and commercial installations with high prospective fault levels.
• High Fault Interruption: Rated breaking capacity of 80kA at 415V AC and 40kA at 250V DC for safe disconnection.
• gG Utilisation Category: Suitable for general-purpose applications, providing full-range overload and short-circuit protection.
• Complies with International Standards: Meets BS88: Parts 1 & 2 and IEC60269-1 & 2 for trusted performance.
• ASTA Certified: Tested and approved under the ASTA 20 Scheme for verified safety and reliability.

Technical Specification

• Fuse Rating: 32A
• Voltage Rating: 415V AC / 250V DC
• Breaking Capacity: 80kA at 415V AC / 40kA at 250V DC
• Utilisation Category: gG (general purpose)
• Dimensions: 12.7mm diameter x 29mm length

✅ Choose the Lawson MD32 for high-integrity, certified protection in demanding industrial circuit applications!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
