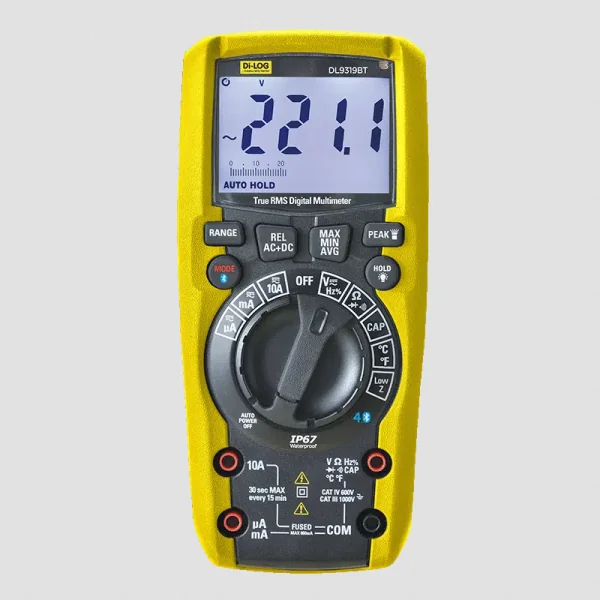

Dilog DL9319BT Professional Heavy Duty True RMS Bluetooth Digital Multimeter 1000V IP67
DL9319BT
Di-LOG DL9319BT TRMS Bluetooth Digital Multimeter – Professional-Grade Testing with Smart Connectivity
The Di-LOG DL9319BT TRMS Bluetooth Digital Multimeter is built for electricians and technicians who require reliable accuracy, rugged durability, and modern connectivity. Designed for demanding industrial, commercial, and residential environments, this professional multimeter delivers True-RMS measurement, Bluetooth data logging, and a robust IP67-rated enclosure for dependable performance on site.
- True-RMS Measurement: Provides accurate readings up to 1000V AC/DC, ideal for testing non-linear loads such as LED drivers and variable frequency drives.
- Bluetooth Connectivity: Connects to the Di-LOG mobile app for real-time data logging, remote monitoring, and easy sharing of test results.
- Low Z Function: Reduces ghost voltage caused by capacitive coupling, helping ensure accurate readings when verifying de-energised circuits.
- Rugged IP67 Construction: Double-moulded, sealed enclosure protects against dust, water, and harsh site conditions.
- Built for Professional Safety: CAT III / CAT IV rated with an integrated torch and backlit display for safe, reliable testing in low-light environments.
Technical Specification
- Voltage Measurement: Up to 1000V AC/DC (True-RMS)
- Current Measurement: Up to 10A
- Resistance Range: Up to 60MΩ
- Display: 6000-count backlit LCD with bar graph
- Protection Rating: IP67 with CAT III / CAT IV safety rating
✅ A rugged, high-accuracy multimeter with smart Bluetooth functionality – ideal for electricians who need dependable testing and data logging on site.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Measured Current | AC/DC |
| Measuring Range | AC voltage DC voltage AC current DC current Resistance Capacitance Frequency Temperature |
| Measuring Accuracy | ±0.1-3.5% ±1-4 dgts % |
| Product | Meter |
| Type | Multimeter |
| Length | 170 mm |
| Warranty | 2 Years |
| Unit Weight | 0.36 kg |
| Width | 75 mm |
| Standards | EN: 50081-1 50082-1 EN: 61010-1 EN 61010-02-031 |
| Ce Approved | Y |
| Included Accessories | 9V battery |
| Volts | 1000 V |
| Height | 48 mm |
| Measuring Frequency | 0.001 | 40000 Hz |
| Measuring Voltage | 0.001 - 1000 V |
