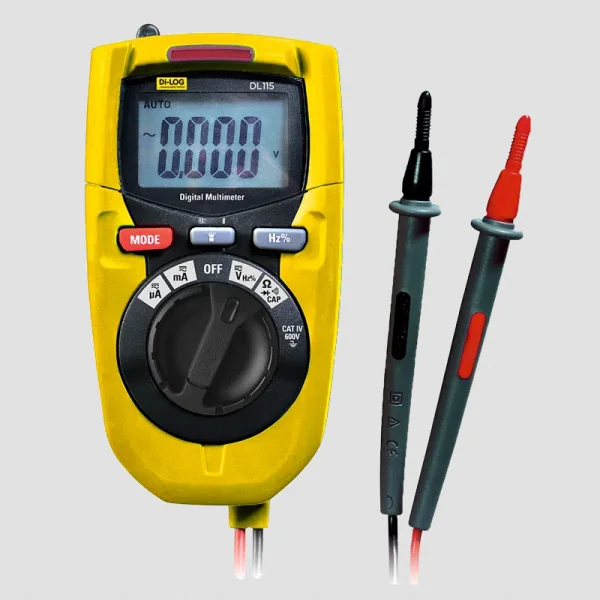

Dilog DL115 3-in-1 600V Pocket Digital Mini Multimeter

DL115 3-in-1 600V Pocket Digital Multimeter – Compact, CAT IV Rated Tester for Professional Electrical Diagnostics

The DL115 3-in-1 Pocket Digital Multimeter is a compact, multi-functional tester designed for electricians and field engineers who require reliable performance in a portable format. Combining a digital multimeter, non-contact voltage detector, and LED flashlight, the DL115 is ideal for fault-finding, maintenance, and commissioning tasks across domestic, commercial, and light industrial installations.

• Comprehensive Measurement Functions: Measures AC/DC voltage up to 600V, AC/DC current up to 200mA, resistance up to 40MΩ, capacitance up to 100µF, and frequency up to 10kHz for versatile on-site testing.
• Integrated Non-Contact Voltage Detection: Safely identify live conductors (100–600V AC) without direct contact, improving safety during inspection and troubleshooting.
• Auto-Ranging Operation: Automatically selects the correct measurement range for fast, efficient testing and reduced user error.
• 4000-Count Backlit Display: Clear, easy-to-read LCD with backlight for accurate readings in low-light environments such as risers and ceiling voids.
• Compact, CAT IV Rated Design: Slim, durable housing (105 x 60 x 38mm), weighing just 145g, suitable for high-energy environments and everyday site use.

Technical Specification

• Voltage Range: AC/DC 0–600V
• Current Range: AC/DC 0.1µA–200mA
• Resistance Range: 0.1Ω–40MΩ
• Capacitance & Frequency: Up to 100µF / Up to 10kHz
• Dimensions & Weight: 105 x 60 x 38mm; 145g

✅ A reliable, pocket-sized testing solution built for professional electricians who need accuracy, safety, and convenience on every job.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
