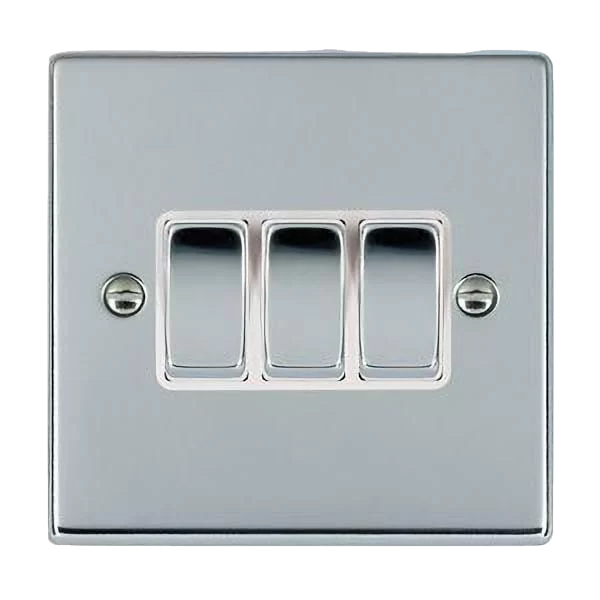

Hamilton Litestat 77R23BC-W Hartland Bright Chrome 3 Gang 2 Way Single Pole Plateswitch With White Insert 10AX
77R23BC-W
Hamilton Hartland 77R23BC-W 3-Gang 2-Way Single Pole Switch – Bright Chrome with White Insert (10AX)
The Hamilton Hartland 77R23BC-W 10AX 3-Gang 2-Way Switch provides control over three lighting circuits, each operable from one or two locations. With a modern Bright Chrome finish and white inserts, it delivers both flexibility and a clean, stylish look for contemporary installations.
- Triple 2-Way Switching: Controls three separate lighting circuits from two different switch points—ideal for larger rooms or open-plan layouts.
- 10AX Load Capacity: Compatible with inductive and resistive loads, including LED and fluorescent lighting.
- Modern Chrome Styling: Bright chrome plate with crisp white inserts for a sleek, contemporary finish.
- Compact 3-Gang Format: Combines multiple controls into one neat unit to save wall space.
- Built for Reliability: Trade-quality construction ensures long-term durability and dependable operation.
Technical Specification
- Plate Style: Hartland Bright Chrome
- Switch Type: 3-Gang 2-Way Single Pole
- Current Rating: 10AX
- Insert Colour: White
- Mounting: Flush – requires 25mm back box
✅ Choose the Hamilton 77R23BC-W for elegant, reliable multi-circuit lighting control with a refined modern finish!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5017503277230 |
| Range | Hamilton Hartland |
| Includes 13a Switch Socket? | N |
| Product | Plateswitch |
| Type | 3 Gang 2 Way |
| Telephone Master | N |
| Includes Rcd? | N |
| Screwless? | N |
| Telephone Secondary | N |
| Tv Socket | N |
| Ingress Protection | IP2XD |
| Fm/dab | N |
| Satellite | N |
| Rj11 | N |
| Rj45 Cat 5e | N |
| Rj45 Cat 6 | N |
| USB Included | N |
| Insert Colour | White |
| Fixing Centres | 60.3 mm |
| Mounting Box Minimum Depth | 25 mm |
| Number Of Gangs | 3 |
| Voltage | 220/250 V |
| Unit Weight | 0.132 kg |
| Pole Configuration | Single Pole (1P) |
| Mounting | Flush |
| Width | 88.0 mm |
| Depth | 5 mm |
| Current Rating | 10 A |
| Standards | BS EN 60669-1 |
| Ce Approved | N |
| Height | 88.0 mm |
| Body Material | Metal |
| Gangs | 3 Gang |
| Neon Indicator | N |
| Face Colour | Bright Chrome |
| Ways | 2 Way |
| Rocker Colour | Bright Chrome |
| Flex Outlet | N |
| Switched/unswitched | Switched |
| Fuse Fitted | N |
| Lockable? | N |
