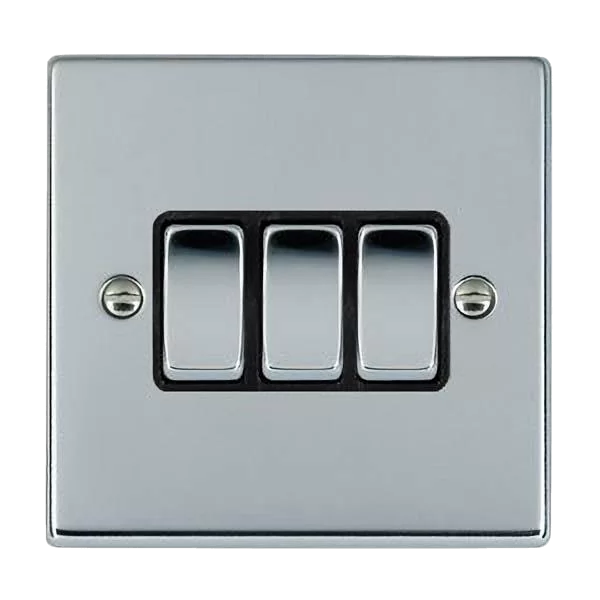

Hamilton Litestat 77R23BC-B Hartland Bright Chrome 3 Gang 2 Way Single Pole Plateswitch With Black Insert 10AX
77R23BC-B
Hamilton Hartland 77R23BC-B 3-Gang 2-Way Single Pole Switch – Bright Chrome with Black Insert (10AX)
The Hamilton Hartland 77R23BC-B 10AX 3-Gang 2-Way Switch is perfect for controlling three separate lighting circuits from one or two locations. With its sleek Bright Chrome finish and black inserts, it brings both functionality and a high-end aesthetic to modern residential or commercial interiors.
- Triple Circuit Control: Operates three individual lighting circuits, each with 2-way functionality—ideal for large rooms or multi-zone lighting setups.
- 10AX Rated: Suitable for both resistive and inductive loads, including LED and fluorescent lighting systems.
- Contemporary Finish: Bright chrome plate with black inserts for a modern, sophisticated appearance.
- 3-Gang Configuration: Provides efficient control in a compact format for convenient wall mounting.
- Trade-Quality Build: Manufactured to professional standards for long-term reliability and performance.
Technical Specification
- Plate Style: Hartland Bright Chrome
- Switch Type: 3-Gang 2-Way Single Pole
- Current Rating: 10AX
- Insert Colour: Black
- Mounting: Flush – requires 25mm back box
✅ Choose the Hamilton 77R23BC-B for stylish, multi-zone lighting control with a premium chrome finish!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5017503276233 |
| Range | Hamilton Hartland |
| Includes 13a Switch Socket? | N |
| Product | Plateswitch |
| Type | 3 Gang 2 Way |
| Telephone Master | N |
| Includes Rcd? | N |
| Screwless? | N |
| Telephone Secondary | N |
| Tv Socket | N |
| Ingress Protection | IP2XD |
| Fm/dab | N |
| Satellite | N |
| Rj11 | N |
| Rj45 Cat 5e | N |
| Rj45 Cat 6 | N |
| USB Included | N |
| Insert Colour | Black |
| Fixing Centres | 60.3 mm |
| Mounting Box Minimum Depth | 25 mm |
| Number Of Gangs | 3 |
| Voltage | 220/250 V |
| Unit Weight | 0.123 kg |
| Pole Configuration | Single Pole (1P) |
| Mounting | Flush |
| Width | 88.0 mm |
| Depth | 5 mm |
| Current Rating | 10 A |
| Standards | BS EN 60669-1 |
| Ce Approved | N |
| Height | 88.0 mm |
| Body Material | Metal |
| Gangs | 3 Gang |
| Neon Indicator | N |
| Face Colour | Bright Chrome |
| Ways | 2 Way |
| Rocker Colour | Bright Chrome |
| Flex Outlet | N |
| Switched/unswitched | Switched |
| Fuse Fitted | N |
| Lockable? | N |
