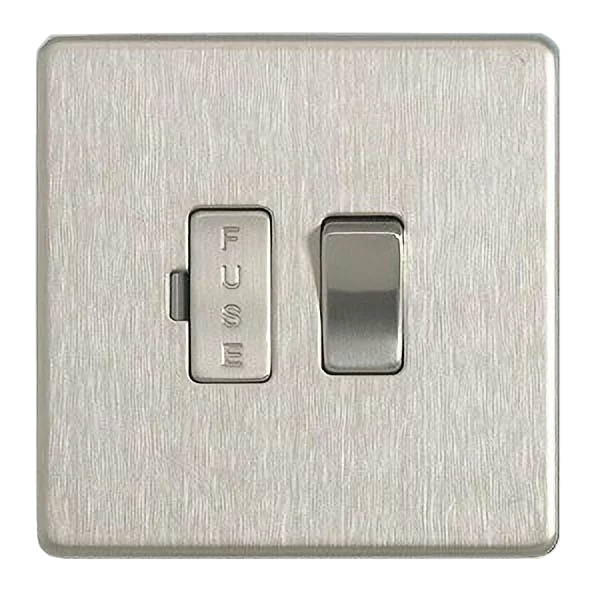

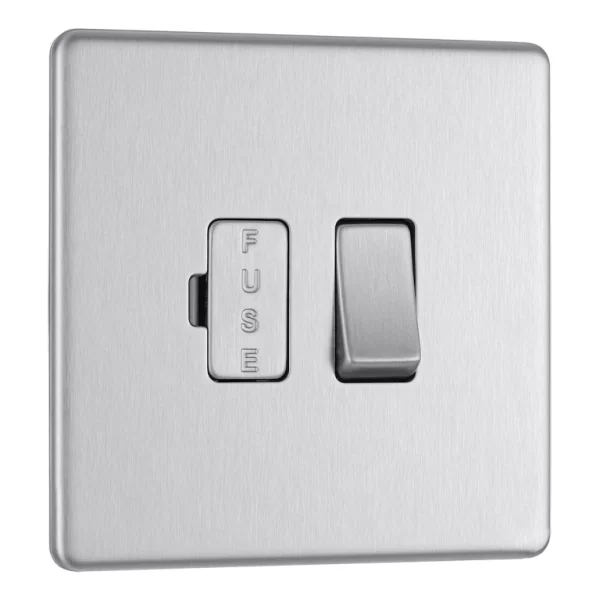

BG Electrical FBS50 Nexus Brushed Steel Screwless Flat Plate Switched DP Fused Connection Unit 13A
FBS50
BG Nexus FBS50 13A Switched Fused Connection Unit – Brushed Steel Screwless Flat Plate with DP Isolation
The BG Nexus FBS50 is a stylish and reliable 13A fused connection unit, ideal for safely connecting fixed appliances. Featuring double pole switching and a screwless brushed steel flat plate, it combines robust protection with a sleek finish for both residential and commercial installations.
- 13A Fused Protection: Integrated fuse safeguards connected appliances while allowing convenient local isolation.
- Double Pole Switching: Isolates both live and neutral conductors to meet safety requirements for fixed installations.
- Slimline Screwless Finish: Brushed steel flat plate with rounded edges and under 5mm profile enhances modern interiors.
- Quick Installation: Clip-on faceplate, colour-coded terminals, and backed-out captive screws ensure efficient fitting.
- Integrated Gasket: Plastic moisture barrier protects the rear surface, ideal for kitchens or utility areas.
Technical Specification
- Order Code: FBS50
- Standards: BS 1363 Part 4
- Rating: 13 Amp 250V~
- Switch Type: Double pole
- Mounting Box Depth: Minimum 35mm
✅ Choose the BG Nexus FBS50 for safe, smart appliance connection with a clean and modern brushed steel finish!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5050765006316 |
| Range | BG Nexus Flatplate Screwless |
| Includes 13a Switch Socket? | Y |
| Product | Connection Unit - Spur |
| Type | Switched |
| Screwless? | Y |
| Length | 87.4 mm |
| Fixing Centres | 60.3 mm |
| Mounting Box Minimum Depth | 35 mm |
| Number Of Gangs | 1 |
| Pole Configuration | Double Pole (2P) |
| Width | 87.4 mm |
| Current Rating | 13 A |
| Standards | BS 1363 |
| Height | 28.8 mm |
| Face Colour | Brushed Stainless Steel |
| Switched/unswitched | Switched |
| Fuse Fitted | Y |
