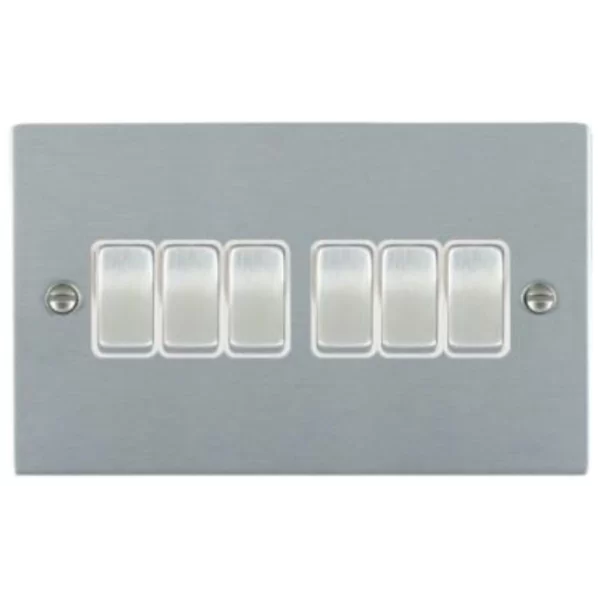

Hamilton Litestat 86R26SC-W Sheer Flat Plate Satin Chrome 6 Gang 2 Way Single Pole Plateswitch With White Insert 10AX

Technical Specification:

Plate material: Metal

Dimensions: 86 x 146 x 1.5mm

Box fixing hole centres: 120.6mm

Minimum wall box depth: 25mm

Current rating: 10AX

Voltage: 220/250V AC

Max load: 10 Amp inductive

Mains Frequency: 50Hz

Switched Poles: Single

Contact Gap Minimum: 3mm

Terminal Capacity 1: 5 x 1mm²

Terminal Capacity 2: 4 x 1.5mm²

Terminal Capacity 3: 1 x 2.5mm²

Terminal Capacity 4: 1 x 4mm² Multi-Strand

Terminal Capacity 5: 1 x 6mm²

Earth Terminal Capacity 1: 5 x 1mm²

Earth Terminal Capacity 2: 4 x 1.5mm²

Earth Terminal Capacity 3: 3 x 2.5mm

Earth Terminal Capacity 4: 1 x 4mm² Multi-Strand

Earth Terminal Capacity 5: 1 x 6mm

BS EN ISO Standard: BS EN 60669-1
