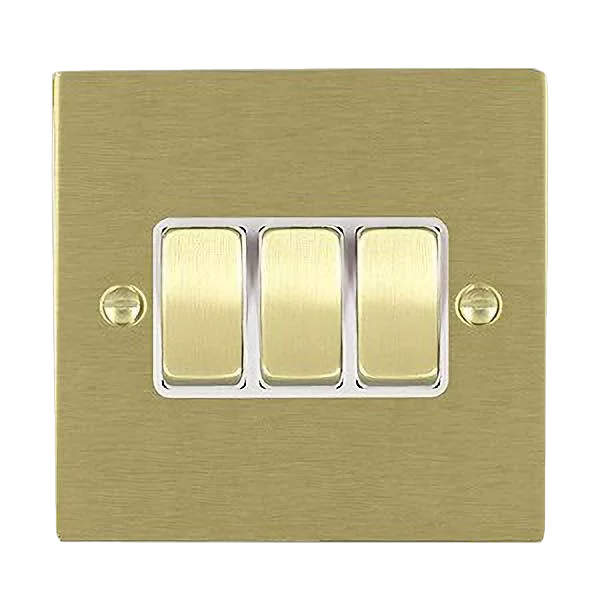

Hamilton Litestat 82R23SB-W Sheer Flat Plate Satin Brass 3 Gang 2 Way Single Pole Plateswitch With White Insert 10AX
82R23SB-W
Hamilton Litestat 82R23SB-W Sheer Flat Plate 10AX 3 Gang 2 Way Switch – Satin Brass with White Insert, Ideal for Multi-Zone Lighting Control
The Hamilton Litestat 82R23SB-W from the Sheer Flat Plate range is a 3 gang 2 way single pole switch rated at 10AX, designed for controlling three separate lighting circuits from one or two locations. Featuring a Satin Brass finish with a white insert, it delivers a clean, premium aesthetic for high-end residential or commercial environments.
- 10AX Switching Capability: Suitable for resistive and inductive lighting loads, including fluorescent fittings, up to 10A.
- 3 Gang 2 Way Operation: Controls three individual lighting circuits from one or two points—ideal for open-plan areas or rooms with multiple zones.
- Satin Brass Finish: Classic brass faceplate with white insert for a refined, timeless look.
- Slim Flat Plate Design: Sheer Flat Plate profile ensures a discreet, flush fit for sleek modern installations.
- Reliable Build Quality: Designed by Hamilton for professional performance and long-lasting durability.
Technical Specification
- Plate Finish: Satin Brass
- Insert Colour: White
- Switch Type: 3 Gang 2 Way Single Pole
- Current Rating: 10AX
- Mounting: Flush (Sheer Flat Plate)
✅ Choose the Hamilton 82R23SB-W for elegant, flexible lighting control across three circuits with a high-quality brass finish!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5017503043231 |
| Range | Hamilton Sheer |
| Includes 13a Switch Socket? | N |
| Product | Plateswitch |
| Type | 3 Gang 2 Way |
| Telephone Master | N |
| Includes Rcd? | N |
| Screwless? | N |
| Telephone Secondary | N |
| Tv Socket | N |
| Ingress Protection | IP2XD |
| Fm/dab | N |
| Satellite | N |
| Rj11 | N |
| Rj45 Cat 5e | N |
| Rj45 Cat 6 | N |
| USB Included | N |
| Insert Colour | White |
| Fixing Centres | 60.3 mm |
| Mounting Box Minimum Depth | 25 mm |
| Number Of Gangs | 3 |
| Voltage | 220/250 V |
| Unit Weight | 0.146 kg |
| Pole Configuration | Single Pole (1P) |
| Mounting | Flush |
| Width | 86.0 mm |
| Depth | 1.5 mm |
| Current Rating | 10 A |
| Standards | BS EN 60669-1 |
| Ce Approved | N |
| Height | 86.0 mm |
| Body Material | Metal |
| Gangs | 3 Gang |
| Neon Indicator | N |
| Face Colour | Satin Brass |
| Ways | 2 Way |
| Rocker Colour | Satin Brass |
| Flex Outlet | N |
| Switched/unswitched | Switched |
| Fuse Fitted | N |
| Lockable? | N |
