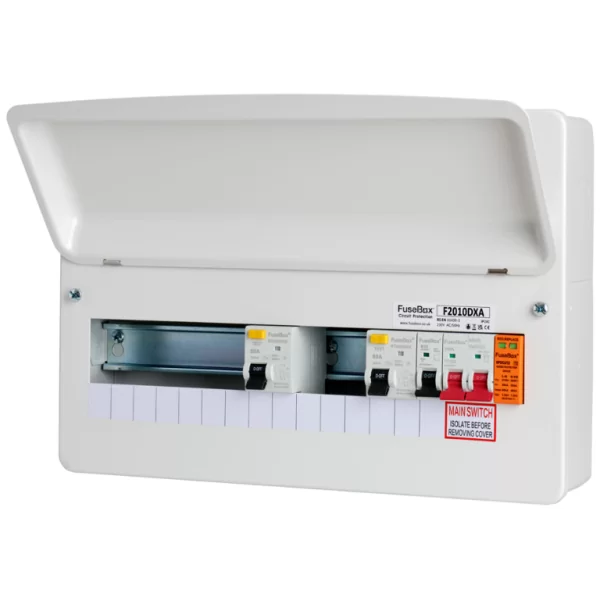

FuseBox F2010DX100A 10 Way Consumer Unit With 2x80A Type A RCD & Type 2 Surge Protection Device
F2010DXA
FuseBox 10 Way Consumer Unit with 2 x 80A Type A RCD & Type 2 Surge Protection Device – Advanced Protection for Reliable Electrical Safety
The FuseBox 10 Way Consumer Unit includes dual 100 Amp Type A RCDs and an integrated Type 2 Surge Protection Device (SPD), providing comprehensive safety and robust circuit protection. Ideal for larger residential and commercial installations, this unit delivers enhanced reliability, flexibility, and surge protection.
Dual RCD Protection: Features two 80 Amp Type A RCDs, effectively safeguarding against AC and pulsating DC earth fault currents.
Surge Protection Device: Built-in Type 2 SPD protects sensitive electrical equipment from voltage spikes and surges.
Flexible Circuit Arrangement: Spacious 10-way layout enables easy configuration and future expansion of circuits.
Easy to Install: Designed for quick and straightforward installation, reducing time and effort on-site.
Durable Build: Robust, flame-retardant housing ensures reliable, long-term performance in demanding settings.
Technical Specification
- RCD Rating: 2 x 80 Amp Type A
- Number of Ways: 10
- Surge Protection Device: Type 2 SPD
- Mounting: Surface Mounting
- Enclosure Material: Flame-retardant, impact-resistant construction
- Compliance: Fully compliant with British Standards for safety and performance
✅ Choose the FuseBox 10 Way Consumer Unit for superior protection, versatility, and electrical reliability!
| Body Finish | Powder Coated |
| Rcd 2 Rating | 80 A |
| Rated Voltage | 230 V |
| Surge Protection Included | Yes |
| Installation Type | Domestic |
| Surge Protector Type | Type 2 |
| Product | Consumer Unit w/ RCD + SPD |
| Ingress Protection | IP2XC |
| Pole Configuration | Double Pole (2P) |
| Mounting | Surface |
| Width | 378 mm |
| Depth | 113 mm |
| Standards | BS EN 61439-3 |
| High Integrity | Yes |
| Rcd Rating | 80 A |
| Rcd Sensitivity | 30 mA |
| Height | 259 mm |
| Door/lid Type | Solid |
| Rcd 2 Sensitivity | 30 mA |
| Body Colour | Cream RAL 9001 |
| Number Of Phases | Single |
| Body Material | Steel |
| Current Rating (max) | 100 A |
| Outgoing Ways | 10 Way |
| Incomer Included | Y |
| Incomer Type | Switch Disconnector |
| Incomer Current Rating | 100 A |
| Metered | N |
| Split Load | Y |
| Rcd S Included | Y |
| Number Of Rcd S | 2 |
| Outgoing Devices Included | N |
| 18th Edition Compliant | Y |
