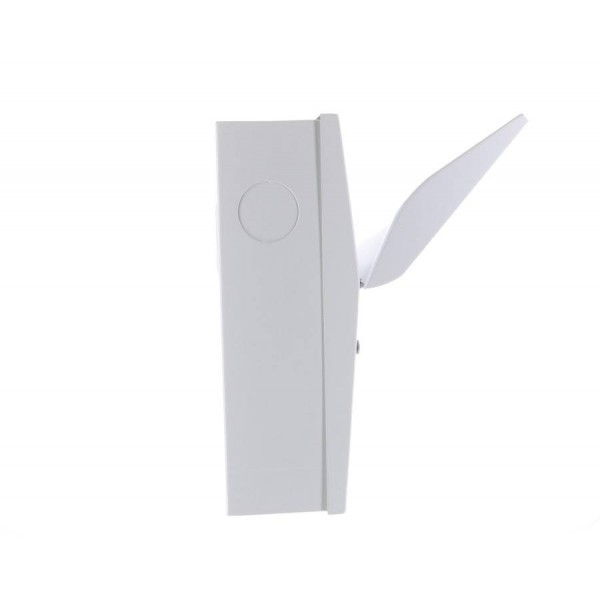

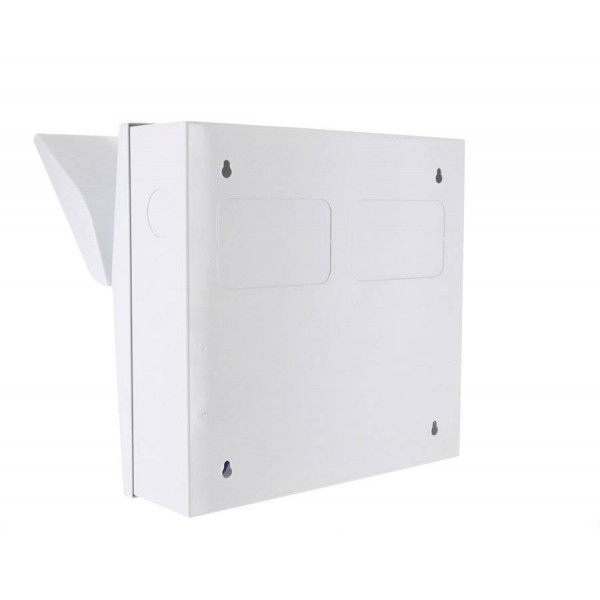

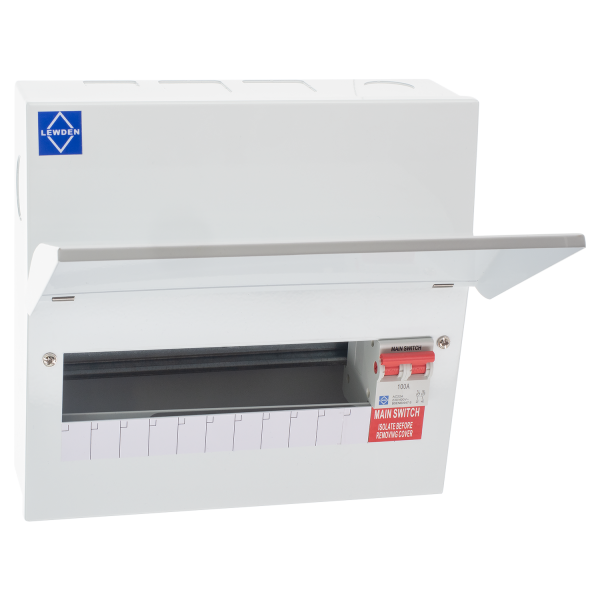

Lewden PRO-MX12M PRO White Amendment 3 All Metal 10 Way Consumer Unit With Switch Disconnector Isolator 100A
PRO-MX12M
The New Lewden Pro Consumer Unit Range has been designed with the Installer in mind, providing an easy to install consumer unit, meeting the requirements of the latest 18th Edition Wiring Regulations in a stylish, non-obtrusive range of Enclosures. With Square Knockout arrangements
Features
10 useable ways
• Supplied complete with main switch
• One extra module for installation of SPD.
• New & improved range.
• Extra wiring space.

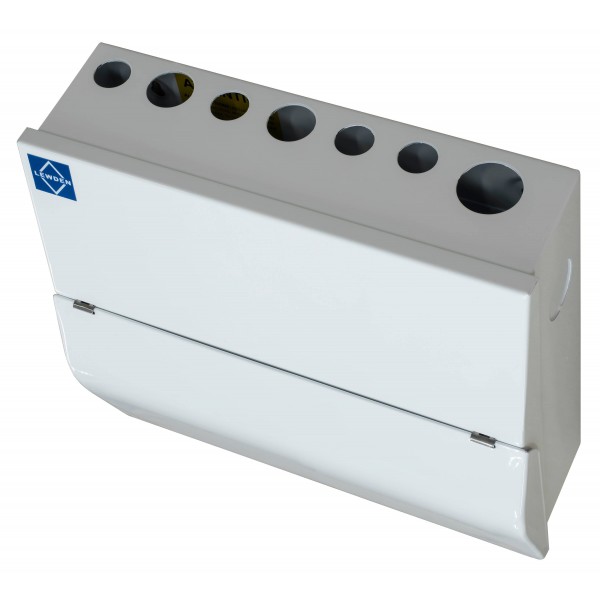

• Selection of knockouts for mini trunking and conduits.
Technical Specification
Rated operating voltage: 230V
Protection degree: IP2XC
Manufacturing material: Steel
Frequency: 50Hz
Phase: 1
Execution: Wall mounting
Modules Number:Â 10+1
Rated current: 100A
Net weight:Â 2.95KG
Dimensions: 266x281x106mm (HWD)
| Rated Voltage | 230 V |
| Surge Protection Included | No |
| Ean Code | 5026992049341 |
| Range | Lewden PRO |
| Installation Type | Domestic |
| Product | Consumer Unit w/ Main Switch |
| Voltage | 230 V |
| Unit Weight | 3.2 kg |
| Pole Configuration | Double Pole (2P) |
| Mounting | Surface |
| Width | 281 mm |
| Depth | 106 mm |
| Current Rating | 100A |
| Standards | BS EN 60947-3 BS EN 61439-3 |
| High Integrity | No |
| Number Of Poles | Double Pole (2P) |
| Height | 266 mm |
| Door/lid Type | Solid |
| Number Of Phases | Single |
| Body Material | Mild Steel |
| Body Material | Steel |
| Current Rating (max) | 100 A |
| Outgoing Ways | 10 Way |
| Incomer Included | Y |
| Incomer Type | Switch Disconnector |
| Incomer Current Rating | 100 A |
| Metered | N |
| Split Load | N |
| Rcd S Included | N |
| Number Of Rcd S | 0 |
| Outgoing Devices Included | N |
| 18th Edition Compliant | Y |
