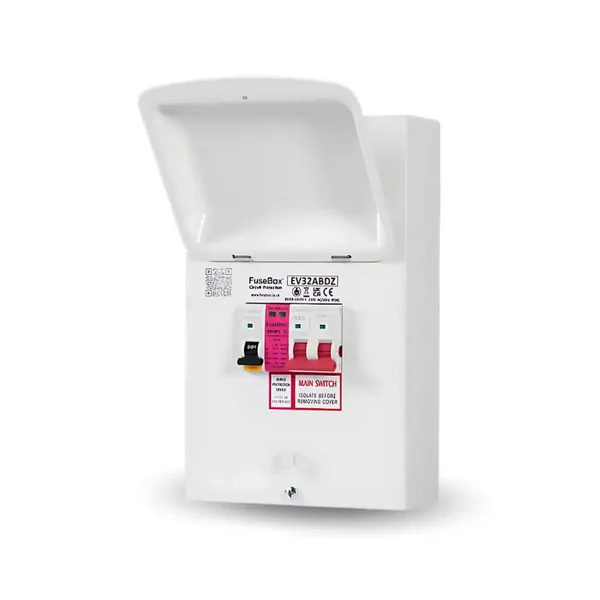

FuseBox EV32ABDZ EV Charger Consumer Unit With 32A Bi-Directional RCBO, 100A Main Switch & Type 2 Surge Protection Device
EV32ABDZ
FuseBox EV32ABDZ – 32A EV Charger Supply Unit with RCBO & SPD Protection
The FuseBox EV32ABDZ is a dedicated supply unit for EV charger installations, providing robust protection with a 100 A main switch, 32 A bi-directional RCBO, and integrated Type 2 surge protection device. Built to comply with BS EN 61439-3 and 18th Edition Amendment 2 regulations, this unit ensures safe and reliable operation for domestic, commercial, and renewable charging applications.
- Comprehensive Protection: Fitted with 100 A main isolator, 32 A Type A RCBO (double-pole 1P+N) and Type 2 SPD.
- Residual Safety: 30 mA sensitivity with B-curve tripping characteristic for effective fault protection.
- Durable Enclosure: 1 mm electro-galvanised steel with RAL 9001 white powder-coated finish.
- Installer-Friendly: Removable DIN rail, captive screws, side knock-outs, and 16 mm² cable capacity.
- Standards Compliance: Internal IP2X rating; fully certified to BS EN 61439-3 and Amendment 2 EV wiring regs.
Technical Specification
- Main Switch: 100 A isolator
- RCBO: 32 A Type A bi-directional (1P+N), 30 mA, B-curve
- Surge Protection: Type 2 SPD (SPD1MT2)
- Enclosure: 1 mm electro-galvanised steel, RAL 9001 white, IP2X internal
- Dimensions: 261 × 152 × 93 mm (H × W × D)
✅ The FuseBox EV32ABDZ ensures safe, compliant, and reliable EV charger installations – built with protection and installer convenience in mind!
Body Finish | Powder Coated |
Rated Voltage | 230 V |
Surge Protection Included | Yes |
Installation Type | Domestic |
Surge Protector Type | Type 2 |
Product | Consumer Unit w/Main Switch, RCBO + SPD |
Type | EV Charging |
Ingress Protection | IP2XC |
Pole Configuration | Double Pole (2P) |
Mounting | Surface |
Standards | BS EN 61439-3 |
High Integrity | No |
Door/lid Type | Solid |
Body Colour | Cream RAL 9001 |
Number Of Phases | Single |
Body Material | Steel |
Current Rating (max) | 100 A |
Outgoing Ways | 1 Way |
Incomer Included | Y |
Incomer Type | Switch Disconnector |
Incomer Current Rating | 100 A |
Metered | N |
Split Load | N |
Rcd S Included | N |
Outgoing Devices Included | Y |
18th Edition Compliant | Y |
