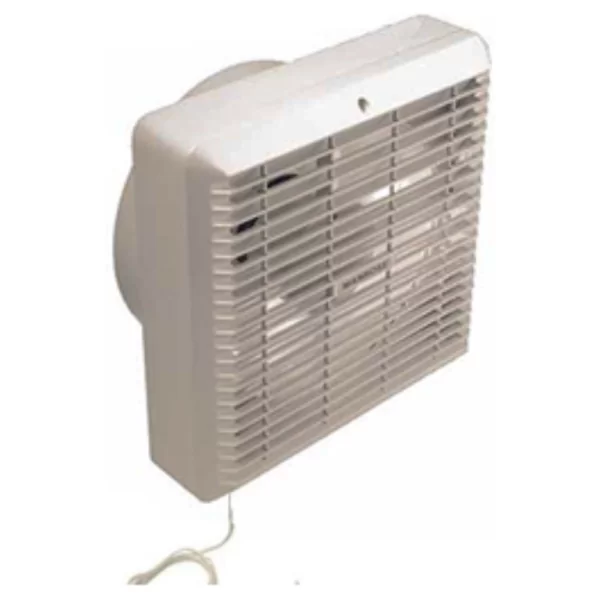

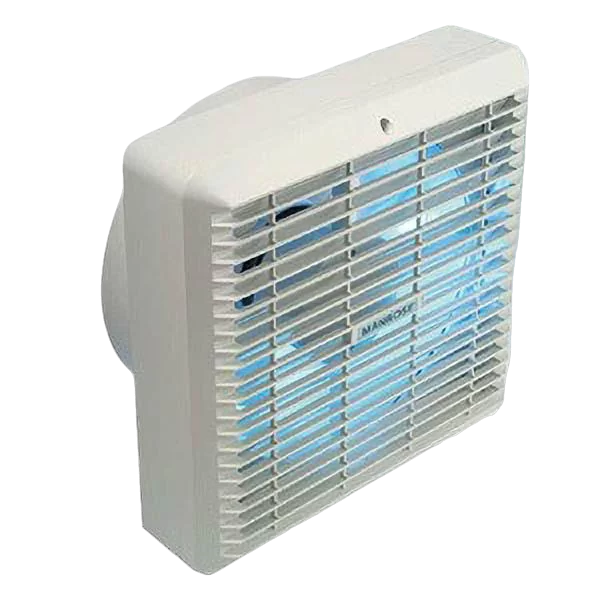

Manrose COMCW230MP Grey Commercial Surface Wall/Ceiling Fan With Pullcord Operated Internal Shutters 9"/230mm 668 m³/hr
COMCW230MP
Commercial Surface Wall/Ceiling Fan – 9" Pullcord Shutters, High Extraction & Durable ABS Construction
This 230mm (9") surface-mounted fan features manual pullcord-operated internal shutters, housed within a vandal-resistant louvre. Designed for commercial applications, it offers robust performance and efficient airflow, combining modern design with proven reliability.
- Manual Pullcord Shutters: Operated via pullcord and integrated into a protective internal louvre to reduce the risk of tampering or damage.
- Powerful Air Extraction: Provides high airflow at 668 m³/hr (185 l/s), making it suitable for larger commercial spaces.
- Robust ABS Housing: Constructed from high-impact, recyclable ABS thermoplastic for durability and easy maintenance.
- Long-Life Induction Motor: Features a 4-pole single-phase motor with pre-oiled bearings for maintenance-free, reliable operation.
- Speed Control Options: Compatible with the COMTSVR variable/reversible speed controller for customisable airflow control.
Technical Specification
- Mounting: Surface – wall or ceiling
- Shutter Operation: Manual pullcord, behind vandal-resistant louvre
- Material: High-impact recyclable ABS thermoplastic
- Airflow Rate: 668 m³/hr (230mm)
- Motor Type: 4-pole single-phase induction motor with pre-oiled bearings
✅ Opt for this sturdy and easy-to-control fan for dependable ventilation in commercial environments!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| C/w Humidistat | N |
| C/w Pullcord | Y |
| Ean Code | 5020953556237 |
| Range | Manrose COM Range |
| S4 - Size | 230mm / 9 Inch |
| Product | Commercial Axial Fan |
| Type | Wall/Ceiling |
| Ingress Protection | IP44 |
| Colour | Grey |
| Voltage | 220/240 V |
| Mounting | Wall/Window/Ceiling |
| Use | Commercial |
| Material | ABS |
| Frequency | 50 Hz |
| Overall Length | 286 mm |
| Number Of Poles | 4P |
| Cased | Y |
| Number Of Speeds | 1 |
| Motor Power | 41 W |
| Maximum Standard Air Supply | 40 Degrees C |
| Reversible | N |
| Air Extraction Rate M3/h | 668 M3/h |
| C/w Light | N |
| C/w Duct | N |
| C/w Timer | N |
| Body Colour | White |
| Impeller Diameter | 230 mm |
| Number Of Phases | Single |
| Maximum Speed | 1600 rpm |
| Overall Depth | 75 mm |
| Overall Width | 286 mm |
| Shape | Square |
| Maximum Sound Power Level | 53 Db |
