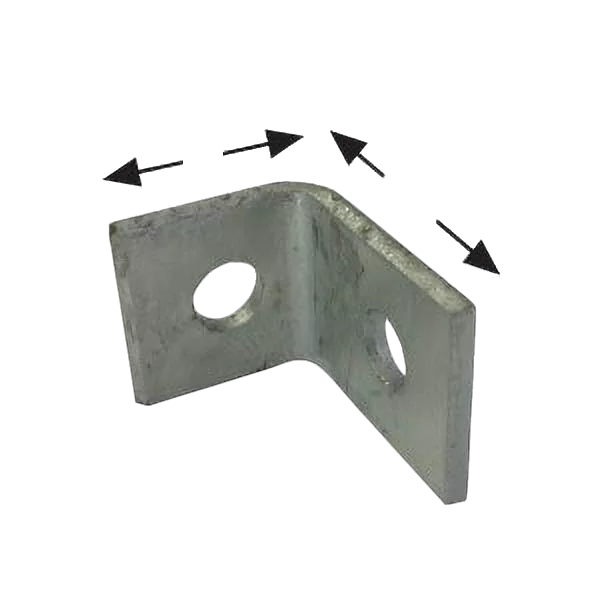

SB500 Galvanised 2 Hole 90º Angle Plate 48mm x 48mm
SB500
SB500 Galvanised 2 Hole 90º Angle Plate 48mm x 48mm – Heavy-Duty Bracket for Cable & Pipe Support Systems
The SB500 Galvanised 2 Hole 90º Angle Plate is part of a robust range of brackets and accessories designed for quick, secure installation in support structures. Conforming to BS6946 and hot dip galvanised for corrosion resistance, it provides reliable right-angle support for cable trays, ladders, and pipework without the need for on-site welding or fabrication.
- Manufactured to BS6946: Ensures consistent quality and dimensional accuracy for professional installations.
- Strong & Rigid Construction: Made from 6mm thick steel with 14mm holes suitable for M12 or smaller fixings.
- Hot Dip Galvanised Finish: Coated to BS729 for long-lasting protection in tough environments.
- Quick Installation: No welding or fabrication required, making it ideal for time-efficient setups.
- Versatile Application: Suitable for cable tray, cable ladder, ducting, and pipework support systems.
Technical Specification
- Material: Steel
- Dimensions: 48mm x 48mm
- Thickness: 6mm
- Finish: Hot Dip Galvanised to BS729
- Hole Size: 14mm (suitable for M12 or smaller setscrews)
✅ Choose the SB500 2 Hole 90º Angle Plate for fast, secure support in your cable and pipe installation projects!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Slotted | N |
| Product | Channel Support Plate |
| Type | Angle Plate |
| Colour | Galvanised |
| Unit Weight | 0.125 kg |
| Material | Steel |
| Finish | Galvanised |
| Standards | BS 6946 BS EN 10025 |
| Qualifier | 2 Hole |
| Nominal Width | 48 mm |
| Angle | 90 Degree |
