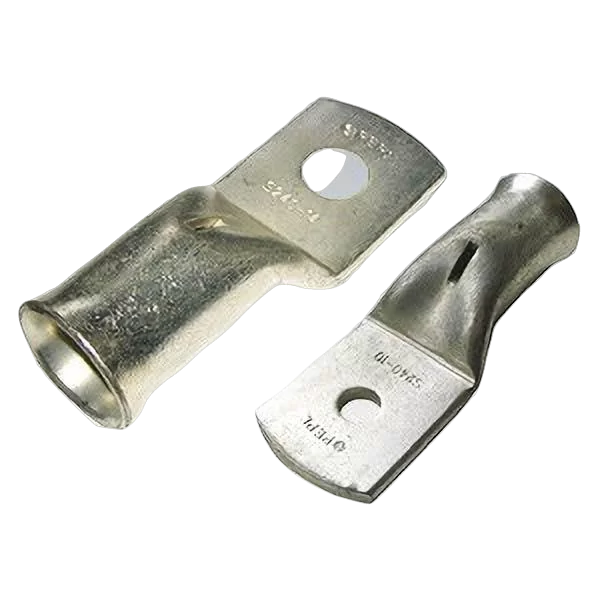

16-12TQ Copper Tube Terminal Stud Size: M12 / Cable Size: 16mm²
1612T
16-12TQ Copper Tube Terminal – M12 Stud, 16mm² Cable Size, High-Quality British-Manufactured Lug
The 16-12TQ Copper Tube Terminal is a robust and precision-engineered lug designed for professional cable terminations. Manufactured in the UK to stringent standards, it ensures high performance and reliability in demanding electrical applications.
- Seamless Copper Tube: Manufactured to BSEN12449 for structural strength and consistency.
- Excellent Conductivity: Pure grade copper base to BS2871 provides superior electrical performance.
- Bell Mouth Entry: Flared end design allows for easy cable insertion and reduces conductor damage.
- Corrosion Protection: Electro-tin plated finish to BS1872:1984 enhances durability in tough environments.
- Standards Compliant: Fully conforms to BS4579 for safety and quality assurance.
Technical Specification
- Stud Size: M12
- Cable Size: 16mm²
- Material: Pure seamless copper
- Plating: Electro-tin to BS1872:1984
- Compliance: BSEN12449 / BS4579
✅ Choose the 16-12TQ Copper Tube Terminal for a secure, professional connection in any installation!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5050291023467 |
| Product | Terminal |
| Type | Terminal Stud |
| Colour | Electro Tin Plated |
| Length | 42 mm |
| Material | Copper |
| Width | 18 mm |
| Standards | BS EN 12449 BS 1872/6360 |
| Voltage (max) | 1000 V |
| Insulated | No |
| Terminal Material | Copper |
| Cable Size Range | 16 mm2 |
| Hole/stud Size | M12 mm |
