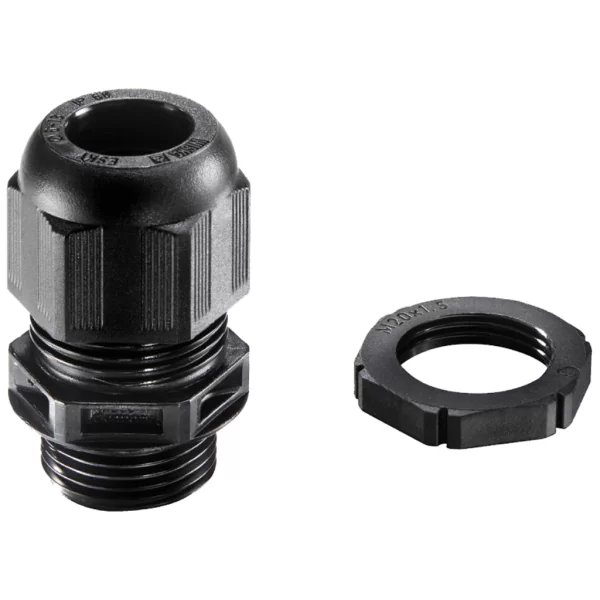

Wiska 10100612 Sprint GLP20+ Black Nylon Dome Top Compression Cable Gland With Locknut IP68 20mm 6mm-14mm

Sprint GLP20+ Black 20mm Nylon Dome Top Cable Gland with Locknut – IP68 Compression Seal for 6–14mm Cables

The Sprint GLP20+ Black Dome Top Cable Gland is designed for durable, watertight cable entry and strain relief in demanding environments. Built from tough polyamide with an EPDM gasket, it offers IP68/IP69K protection for cables between 6mm and 14mm, making it ideal for both indoor and outdoor use.

• IP68 & IP69K Rated: Provides reliable sealing under submersion (5 bar for 30 minutes) and high-pressure cleaning conditions.
• Dome Top Compression Seal: Maintains a strong and flexible grip on the cable, preventing pull-out and water ingress.
• Durable Black Nylon Body: RAL 9005 polyamide construction with EPDM sealing gasket ensures long-lasting performance and UV resistance.
• Wide Cable Range: Compatible with cables from 6mm to 14mm in diameter, offering flexibility across multiple applications.
• Includes Locknut: Supplied with matching locknut for secure panel or enclosure mounting.

Technical Specification

• Cable Diameter Range: 6mm – 14mm
• Thread Size: M20 x 1.5
• Material: Polyamide (black), EPDM gasket
• Protection Class: IP68 (5 bar, 30 min), IP69K
• Temperature Range: -40°C to +100°C (intermittent up to 120°C)

✅ Choose the Sprint GLP20+ Black Cable Gland for high-performance sealing and secure strain relief in demanding electrical installations!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
