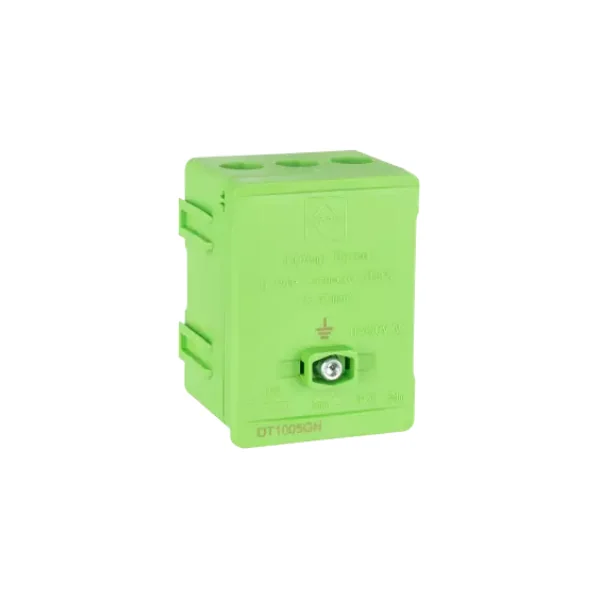

Lewden DT1005GN Green 5 Way Single Pole Distribution Terminal Block 100A

DT1005GN

Est 3-4 day delivery (Subject to availability)
£4.91 inc Vat
£4.09 ex Vat
Free delivery for orders over £100 ex VAT

Lewden DT1005GN Green 5 Way Single Pole Distribution Terminal Block – 100A, Secure & Reliable Connections

The Lewden DT1005GN Distribution Terminal Block is designed for dependable power distribution, offering a robust 100A rating and secure dual screw terminations. With safety-focused features and clear phase identification, it ensures professional, reliable installations in commercial and industrial environments.

  • High Current Capacity: Rated at 100A for demanding distribution applications.
  • Dual Screw Terminations: Secure conductor connection with 4mm Allen key operation.
  • Safe & Reliable: Retained shutters for unused entries and secure cover with locking screw.
  • Clear Identification: Colour coded for phase, neutral, and earth connections.
  • Ingress Protection: IP20 rating for indoor use and safe handling.
Technical Specification
  • Operating Voltage: 230/400VAC
  • Ingress Protection: IP20
  • Terminal Tightening Torque: 3Nm
  • Glow Wire Test: 960°C
  • Entry Cable Sections: 2.5–35mm²

✅ Choose the Lewden DT1005GY for secure, high-performance power distribution in every installation!

Technical Information
Product Connector Block
Type 5 Way 1 Pole
Colour Green
Length 75 mm
Width 270 mm
Depth 215 mm
Current Rating 100 A
Current Rating (max) 100 A
