Quickwire QTPS3 T-Connector 3 Pole Plug & Socket 16A IP20/30

Quickwire QTPS3 T-Connector Plug & Socket – 3-Pole Plug-In Solution with Quickwire Push-Fit Technology

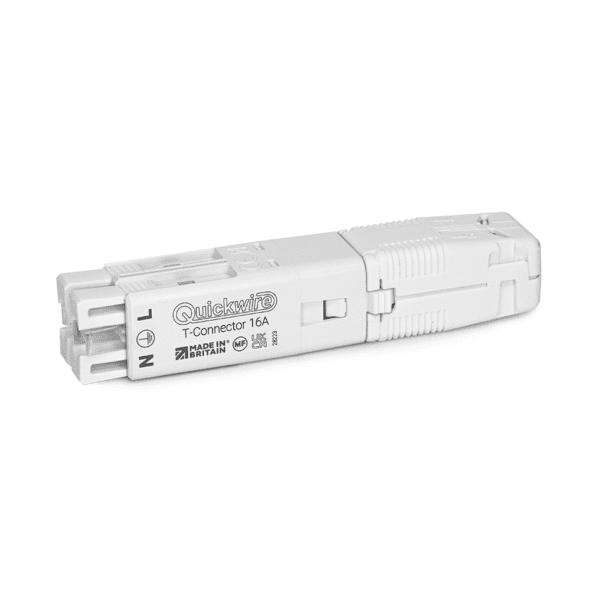

The Quickwire QTPS3 T-Connector is a compact, 3-pole plug and socket system designed to dramatically reduce installation time for lighting and power circuits. The socket features two solid-core Quickwire loop-in, loop-out entries, while the plug supports flexible cable connection via screw terminals and an integrated cord grip. Ideal for applications requiring quick disconnection and reconnection for testing or maintenance.

• Rapid Plug-In Connection: 3-pole plug and socket system enables fast, tool-free installation and disconnection.
• Time-Saving Push-Fit Socket: Utilises Quickwire technology for loop-in, loop-out connections with solid-core Twin & Earth cable.
• Compact & Accessible: Slim design fits through a 30mm hole, making it ideal for confined ceiling spaces.
• Flexible Plug Entry: Accepts 0.5mm² – 1.5mm² flexible or rigid cable with screw terminals and secure cord grip.
• British Designed & Made: High-quality, UK-manufactured solution for fast, safe, and reliable installations.

Technical Specification

• Voltage & Current Rating: 250V~ 16A (Overcurrent protection limited to 16A)
• Poles: 3-pole
• Plug Termination: Screw terminals for flexible or rigid cable (Class 5/6 or Class 1)
• Socket Termination: Quickwire push-fit for 1.0mm² – 1.5mm² Twin & Earth CPC, solid cores (Class 1)
• IP Ratings: IP20 (plugged in), IP30 (socket)

✅ Speed up lighting and power installations with the Quickwire QTPS3 – the compact, plug-in T-connector that saves time without compromising safety!
