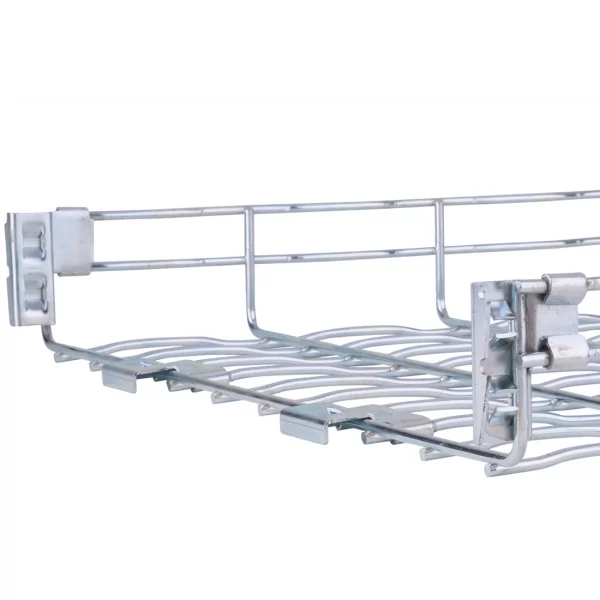

Marshall Tufflex MT2/7396 Electro-Zinc Fast-Coupling Ripple Design Wire Basket Tray Length W:600mm x H:65mm x L:3mtrs
MT2/7396
Marshall-Tufflex MT2/7396 Electro-Zinc Wire Basket Tray – 600mm (W) x 65mm (H) x 3m (L), Ripple Fast-Coupling System
The MT2/7396 Wire Basket Tray from Marshall-Tufflex offers a wide, high-capacity solution for large cable installations. With an integral fast-coupling system and ripple design, this tray ensures strength, quick assembly, and maximum cable ventilation without the need for tools.
- Extra-Wide Capacity: 600mm width provides maximum space for extensive cable routing.
- Rapid Installation: Integral couplers allow quick two-step assembly without tools.
- Reinforced Structure: Ripple design delivers strong resistance to flexing and improves load support.
- Safe & Reliable: Smooth safety edges protect cables during installation and use.
- Optimised Airflow: Open mesh promotes superior ventilation and thermal management.
Technical Specification
- Width: 600mm
- Height: 65mm
- Length: 3000mm
- Finish: Electro-Zinc
- Connection: Fast-coupling with integrated connectors
✅ Choose the MT2/7396 Wire Basket Tray for quick-fit, heavy-duty cable containment with maximum airflow and strength!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Perforated | N |
| Ean Code | 5020838291710 |
| Connection Type | Integrated |
| Product | Cable Basket Tray |
| Type | Fast Coupling |
| Colour | Grey |
| Length | 3000 mm |
| Material | Steel |
| Finish | Electro Zinc Plated |
| Standards | IEC 61537 |
| Ce Approved | Y |
| Height | 65 mm |
| Nominal Width | 600 mm |
| Minimum Operating Temperature | -50 Degrees C |
| Maximum Operating Temperature | 150 Degrees C |
