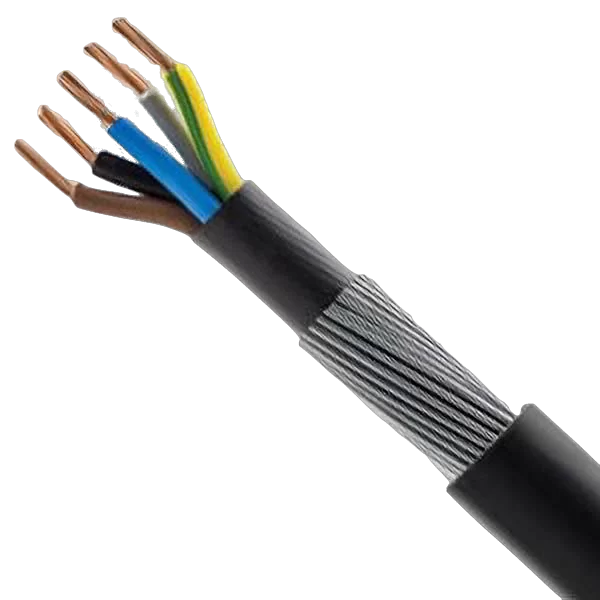

4.0mm 6945X 5 Core Steel Wire Armoured Cable (priced per metre) Black 6945X4.0 BASEC Approved
6945X4.0
5 Core Steel Wire Armoured Cable – Durable & BASEC Approved
This SWA Armoured Cable is designed for reliable power distribution in demanding environments. Suitable for underground, outdoor, indoor, and ducting applications, it provides robust protection with galvanised steel wire armour.
- Versatile Applications: Ideal for mains power distribution in underground, outdoor, indoor, and cable ducting installations.
- Durable Construction: Features stranded plain copper conductors with XLPE insulation, PVC bedding, and a tough PVC sheath.
- Steel Wire Armoured (SWA): Provides mechanical protection, allowing direct burial and resistance to impact.
- Certified Standards: Manufactured to BS5467 and IEC 60502 for assured quality and safety.
- Reliable Conductor: Class 2 plain stranded copper conductor to BS EN 60228:2005 (formerly BS6360).
- Standard Colour Coding: Cores in blue, brown, black, and grey, with a black PVC sheath.
- Voltage Rating: 600/1000V for high-performance electrical installations.
- Temperature Rating: Operates safely between 0°C and +90°C.
Technical Specification
- Cable Type: 6945X 5 Core SWA
- Conductor Size: 4.0mm²
- Voltage Rating: 600/1000V
- Temperature Range: 0°C to +90°C
- Sheath Colour: Black
- Standards Compliance: BS5467, IEC 60502, BASEC Approved
✅ Choose 5 Core SWA Cable for tough, reliable, and high-performance power distribution!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
Construction: Stranded plain copper conductors, XLPE insulated two, three, or four cores laid up with extruded PVC bedding, galvanised steel wire armoured and PVC sheathed.
Standards: Certified to BS5467, IEC 60502
Conductor: Class 2 plain stranded copper conductor to BS EN 60228:2005 (previously BS6360)
Standard Colours: Cores - Blue, Brown, Black & Grey / Sheath Black
Voltage Rating: 600/1000 Volts
Temperature Rating: 0°C to +90°C.
| Ean Code | 5019325304507 |
| Armoured | Y |
| Product | Cable |
| Type | Armoured |
| Conductor Size | 4.0 mm2 |
| Number Of Cores | 5 |
| Outer Sheath Colour | Black |
| Earth Core | Y |
| Drum Length | Per Metre |
