1.5mm 6943B LSZH SWA XLPE 3 Core Steel Wire Armoured Cable (priced per metre) Black 6943B1.5MM LSF BASEC Approved

1.5mm² 6943B LSZH SWA XLPE 3 Core Cable – Steel Wire Armoured, LSZH Sheath, BASEC Approved (Sold per Metre)

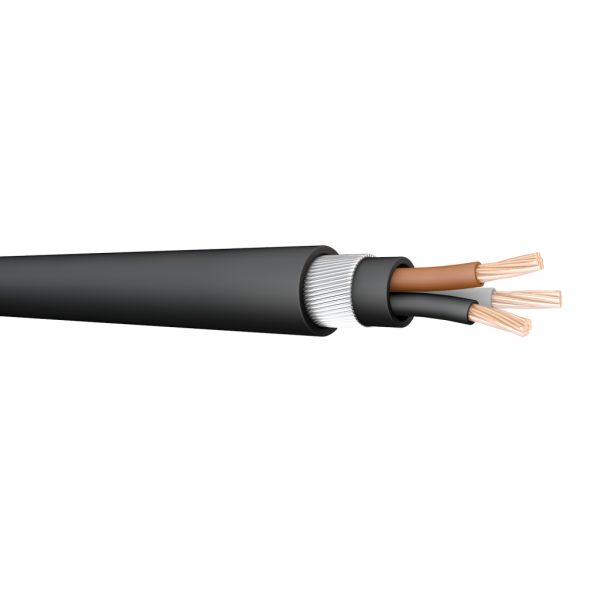

This 6943B 3 core 1.5mm² armoured cable is ideal for fixed installations requiring enhanced mechanical protection and low smoke zero halogen (LSZH) safety. With BASEC approval, XLPE insulation, and SWA armour, it’s designed for safe, durable use in commercial, industrial, and public environments.

• BASEC Approved Design: Fully certified to industry standards for safety, quality, and performance in fixed wiring installations.
• Steel Wire Armour (SWA): Provides mechanical protection for multi-core cable, suitable for direct burial and harsh environments.
• LSZH Sheath & Bedding: Low smoke zero halogen materials reduce toxic fumes in fire scenarios, ideal for populated and enclosed areas.
• XLPE Insulation: Cross-linked polyethylene insulation offers excellent thermal resistance up to 90°C.
• Plain Copper Conductors: Class 2 stranded copper provides efficient conductivity with reliable current capacity.

Technical Specification

• Conductor: Plain Copper, Class 2 Stranded
• Insulation: XLPE
• Bedding & Sheath: LSZH (Low Smoke Zero Halogen)
• Armour: SWA (Steel Wire Armoured)
• Voltage Rating: 0.6/1kV
• Temperature Range: Max +90°C, Min -25°C
• Bending Radius: 6 × Ø (up to 16mm²), 8 × Ø (25mm²+)
• Colour: Black

✅ Choose this BASEC-approved 6943B cable for safe, armoured, and fire-retardant electrical installations in demanding environments!
